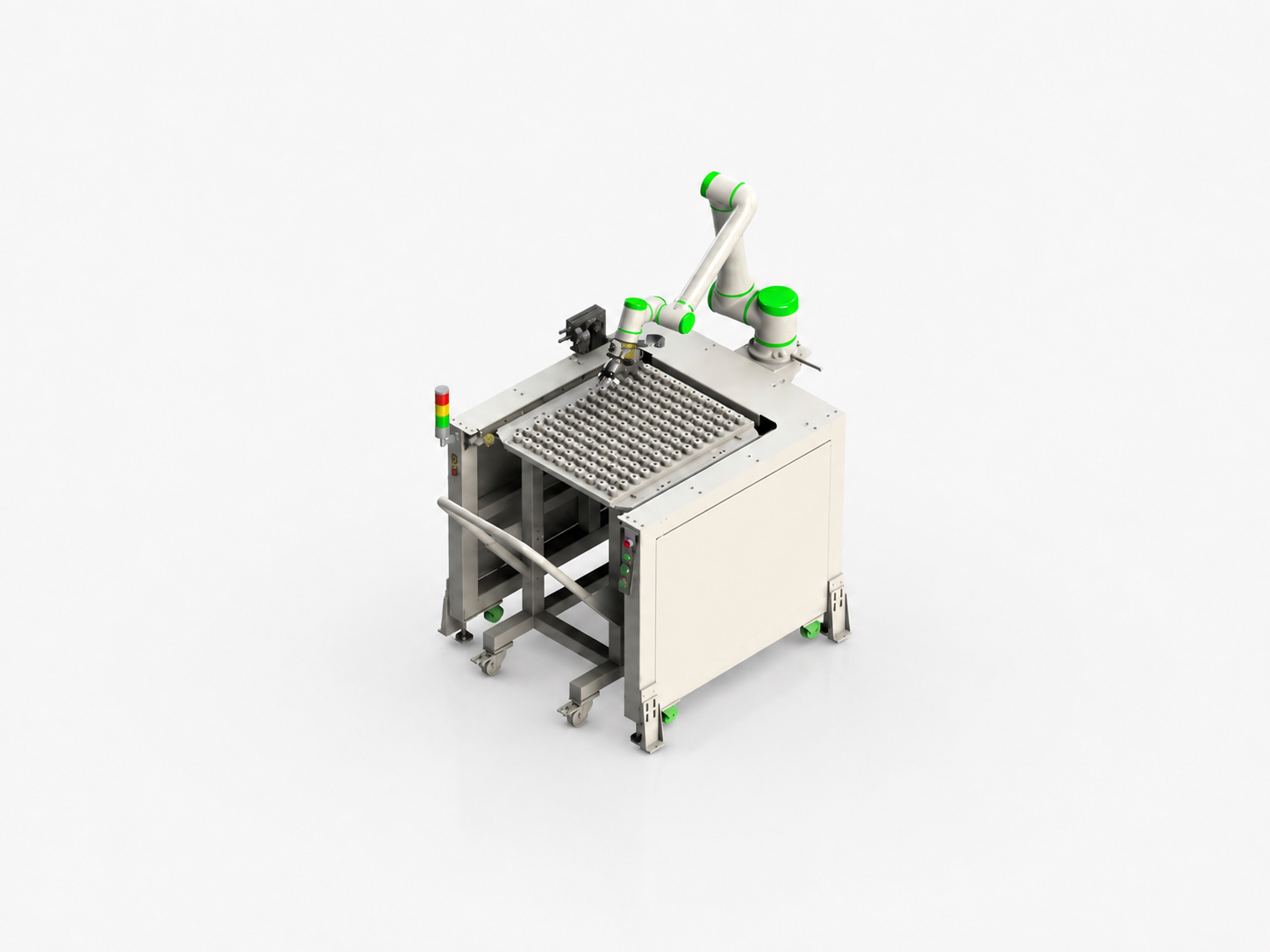

Single-Pallet Material Bin Workstation

PRODUCT PARAMETERS

  • Product Type: Single-Pallet Material Bin Workstation
  • Example Model: LXA-L04-R12-1300
  • Compatible Workpiece: Bar Stock
  • Compatible Machine Tools: CNC Lathe and Vertical Machining Center
  • Machine Layout: 1V1 or 1V2
  • Standard End-of-Arm Tooling: One Set
  • Robot Payload: 12 kg
  • Maximum Working Radius: 1300 mm
  • Repeatability: ±0.03 mm
  • Protection Rating: IP65–IP68
  • Maximum Workpiece Height: 200 mm
Description
FAQs
Request A Quote

Description

Single-Pallet Material Bin Workstation

The single-pallet material bin workstation is designed for robotic loading and unloading of bar stock. It can be integrated with CNC lathes and vertical machining centers according to the machine layout and workpiece handling requirements.

The workstation supports 1V1 and 1V2 machine configurations. One set of end-of-arm tooling is included in the standard configuration. The fixture and pallet should be selected according to the actual workpiece shape and dimensions.

Applications

  • Bar stock loading and unloading
  • CNC lathe machine tending
  • Vertical machining center machine tending
  • 1V1 single-machine layouts
  • 1V2 dual-machine layouts

Product Features

  • Single-pallet material storage configuration
  • Suitable for bar stock handling
  • Compatible with CNC lathes and vertical machining centers
  • Supports 1V1 and 1V2 machine layouts
  • Standard configuration includes one set of end-of-arm tooling
  • Fixture and pallet can be designed according to the workpiece shape
  • Suitable for workpieces with heights up to 200 mm

Main Technical Data

Example ModelLXA-L04-R12-1300
Compatible Workpiece TypeBar stock
Compatible Machine ToolsCNC lathe / vertical machining center
Machine Layout1V1 / 1V2
Standard End-of-Arm ToolingOne set
Rated Robot Payload12 kg
Maximum Working Radius1300 mm
Repeatability±0.03 mm
Protection RatingIP65–IP68
Maximum Workpiece Height≤200 mm
Workpiece Diameter50–200 mm
Workpiece WeightMore than 3 kg and less than 8 kg

Configuration Considerations

  • Actual storage capacity depends on the workpiece dimensions.
  • The illustrated fixture and pallet are suitable for short bar stock.
  • Other workpiece shapes require fixtures and pallets designed according to the actual product structure.
  • The listed workpiece weight range applies to a dual-gripper configuration.

FAQs

Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.

Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.

Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.

Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.

The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.

Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.

Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.

They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.

Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.

Our goal is to help customers achieve stable operation and efficient automation production.
