Collaborative Robot Welding Workstation
PRODUCT PARAMETERS
Product Name: Collaborative Robot Welding System
Robot Type: 6-Axis Collaborative Robot
Payload: 3–20 kg
Working Radius: 705–1798 mm
Welding Process: MIG/MAG Welding
Power Supply: 3-Phase, 380 V
Teaching: Drag Teaching / Simplified Programming
Communication: EtherCAT
Application: Construction machinery, agricultural machinery, automotive tubes, steel structures and shipbuilding
Description
FAQs
Request A Quote
Description

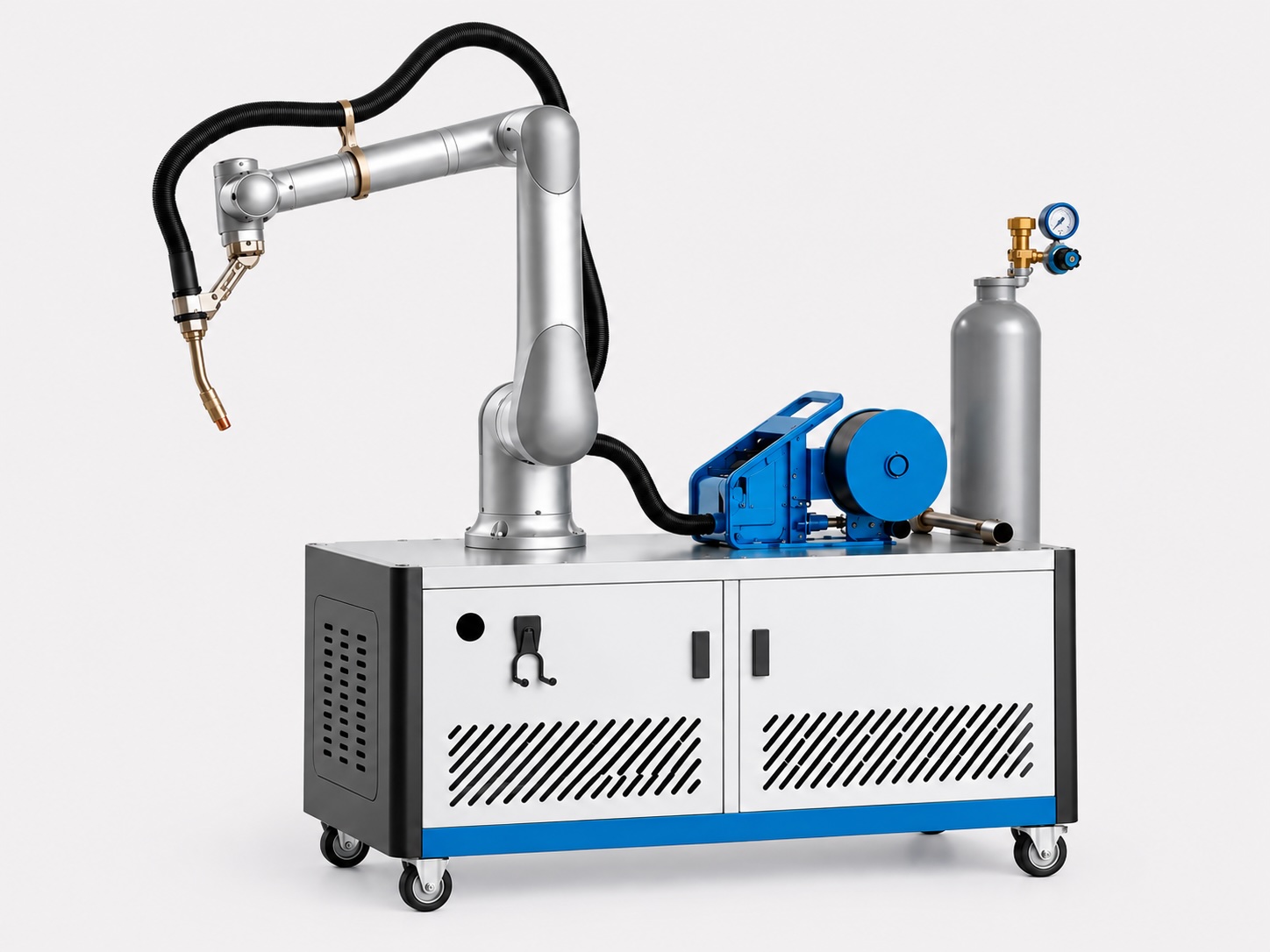

Collaborative Robot Welding System
The JISI Collaborative Robot Welding System is designed for flexible, high-mix welding production, especially for manufacturers handling multiple workpiece types and frequent production changeovers.
With drag teaching, simplified programming, multi-layer & multi-pass welding, intermittent welding and optional seam tracking, operators can quickly set up new welding tasks while maintaining stable welding paths and consistent weld quality.

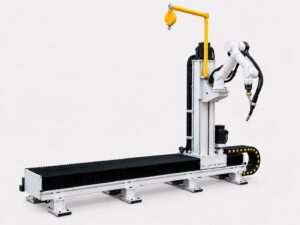

The system can be configured with different robot reach and payload, welding power sources, positioners, linear rails and seam tracking systems according to the workpiece, welding process and production requirements.
Workpieces & Application Fields
- Steel Structures — beams, frames, columns, brackets and structural assemblies
- Construction Machinery — frames, booms, supports and welded components
- Agricultural Machinery — frames, brackets and repetitive welded assemblies
- Heavy & General Fabrication — fabricated frames, plates and metal assemblies
- Pipes & Tubular Components — circumferential and structural weld joints
- Automotive & Transport Components — tubes, frames and welded subassemblies
- Shipbuilding & Marine Fabrication — structural components and repetitive weld seams
- High-Mix / Low-Volume Production — frequently changing workpieces and welding tasks
Challenges & Solutions
- Shortage of skilled welders
- High labor costs
- Inconsistent welding quality
The flexible collaborative welding workstation supports quick changeover, easy teaching and corner welding without complex customized fixtures.
Benefits
- Reduce dependence on skilled welders
- Ensure consistent weld quality
- Increase productivity
- Support high-mix production
- Preserve proven welding processes
6-Axis Robot Specifications
| Equipment Name | Brand | Model | Payload | Working Radius |
|---|---|---|---|---|
| 6-Axis Robot | ROKAE | SR3-3/0.7C | 3 kg | 705 mm |
| SR5-5/0.9C | 5 kg | 919 mm | ||
| CR7-7/0.98C | 7 kg | 988 mm | ||
| CR5-5/1.4C | 5 kg | 1406 mm | ||
| CR12-12/1.4C | 12 kg | 1434 mm | ||
| CR20-20/1.8C | 20 kg | 1798 mm |
Robot Configuration: Standard teach pendant, drag teaching, graphical interface, optional magnetic base, and secondary development of welding process package.
Welding Power Source Specifications
| Equipment Name | Brand | Model | Welding Mode | Input | Communication |
|---|---|---|---|---|---|
| Welding Power Source | AOTAI | NBC-350 | Constant Voltage | 3 Phase 380V | EtherCAT |
| NBC-350RP Plus | Constant Voltage / Pulse | ||||
| NBC-500RP Plus | Constant Voltage / Pulse |
System Components
| Equipment Name | Brand | Model | Cooling Capacity | Water Pump Power | Max. Pressure / Lift / Capacity |
|---|---|---|---|---|---|
| Water Tank | JISI Custom | WRC-300C | 1.7 kW (1 L/min) | 370 W | 0.9 MPa / 60 Hz / 9 L |
| Welding Gun | JISI Custom | AS02501W | Standard 3 m (Customizable) | Air Cooling / Water Cooling | — |
| Mobile Cart | JISI Custom | JSR-006 | — | Customizable Size | Customizable Color |
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
