Compact Linear Rail Robotic Welding System
PRODUCT PARAMETERS
- Product Name: Light-Duty Linear Rail Welding Robot System
Robot Type: 6-Axis Collaborative Robot
Payload: 3–20 kg (depending on robot model)
Robot Reach: 705–1,798 mm (depending on robot model)
Power Supply: 3-Phase 380V
Communication: EtherCAT
External Axis: 6+1 Axes
Linear Rail Travel: 2,000 mm (customizable)
Application: Beams, frames, structural components and small-to-medium metal workpieces
Description
FAQs
Request A Quote
Description

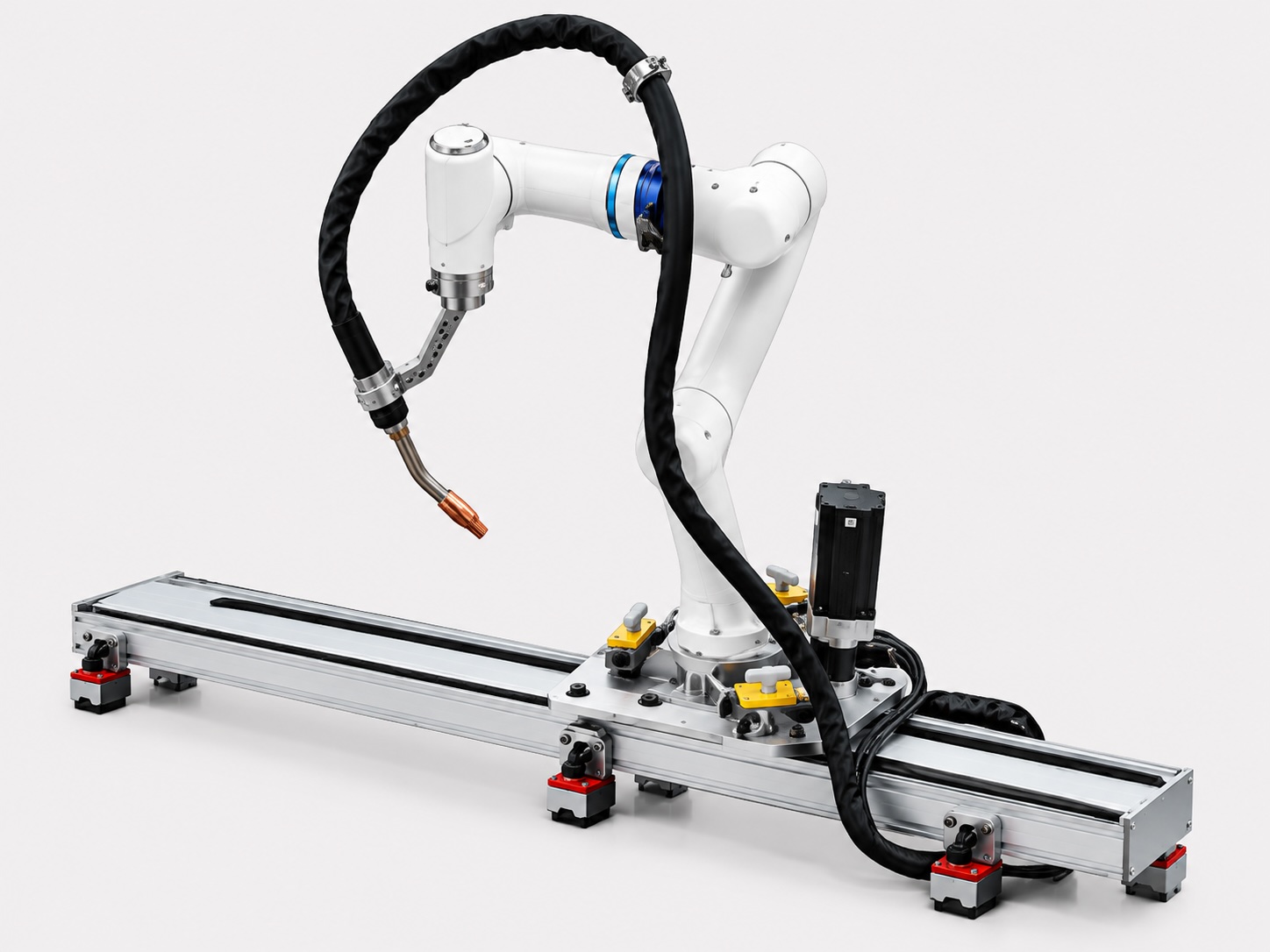

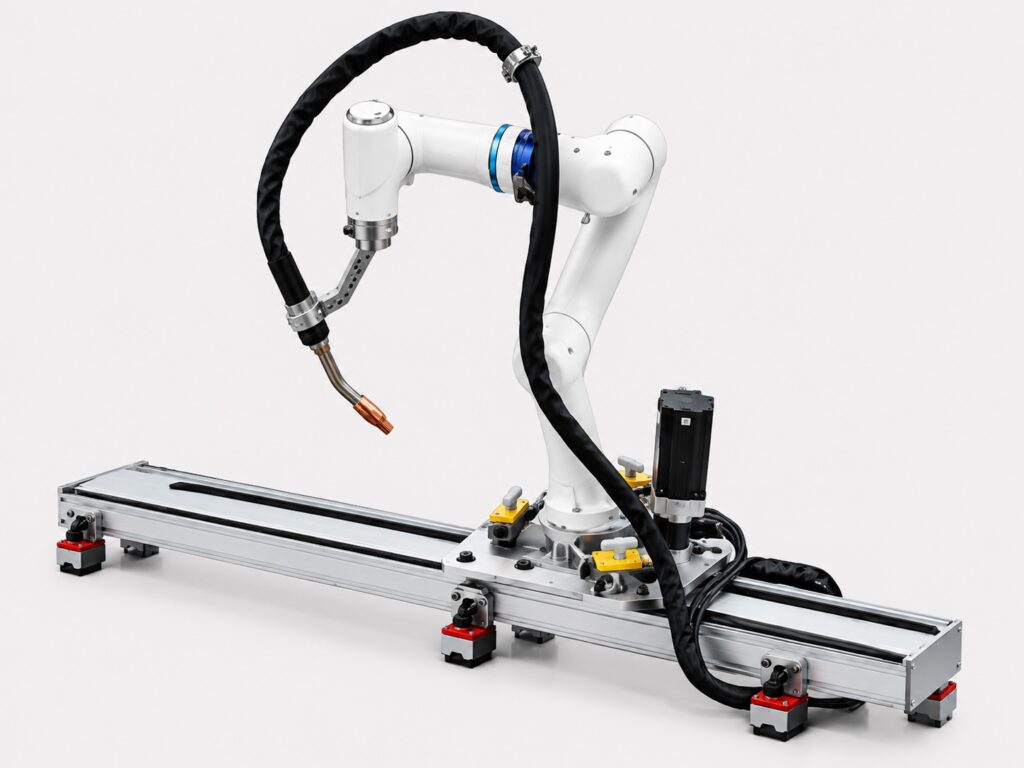

Light-Duty Small Ground Rail Welding Robot
The Light-Duty Small Ground Rail Welding Robot combines a collaborative welding robot with a compact linear rail system, extending the robot’s working range for long workpieces and multiple welding positions.
By moving along the ground rail, the robot can cover a larger welding area without frequently repositioning the workpiece. Its compact and flexible design makes it suitable for workshops with limited floor space and for high-mix, small-to-medium batch production.
The system can be integrated with MIG/MAG welding equipment, welding positioners, fixtures, seam tracking and other optional welding functions according to the application. JISI also provides customized robotic welding solutions based on customers’ workpiece drawings, materials, dimensions and welding requirements.
Product Features
- Extended Working Range – Linear rail movement expands the robot’s effective working area for long and large workpieces.
- Flexible Positioning – The robot can move between different welding positions along the rail, reducing manual repositioning.
- Compact & Space-Saving – Light-duty rail design requires less workshop floor space than large gantry systems.
- Quick Changeover – Suitable for different workpieces and frequent production changeovers.
- Stable Welding Quality – Consistent robot motion, welding speed and torch positioning help improve weld repeatability.
- Optional Intelligent Welding Functions – Seam detection, arc tracking, laser seam tracking and other functions can be configured according to welding requirements.
- Customizable Configuration – Rail length, robot payload, welding power source, positioner and fixtures can be customized for different applications.
Applications
Suitable for robotic welding of:
- Steel Beams & Structural Components
- Metal Frames
- Long Workpieces
- Machinery Components
- Agricultural Equipment Parts
- Construction Machinery Components
- Small-to-Medium Metal Fabrications
- Multi-Station Welding Applications
6-Axis Robot Specifications
| Equipment Name | Brand | Model | Payload | Working Radius |
|---|---|---|---|---|
| 6-Axis Robot | ROKAE | SR3-3/0.7C | 3 kg | 705 mm |
| SR5-5/0.9C | 5 kg | 919 mm | ||
| CR7-7/0.98C | 7 kg | 988 mm | ||
| CR5-5/1.4C | 5 kg | 1406 mm | ||
| CR12-12/1.4C | 12 kg | 1434 mm | ||
| CR20-20/1.8C | 20 kg | 1798 mm |
Robot Configuration: Standard teach pendant, drag teaching, graphical interface, optional magnetic base, and secondary development of welding process package.
Welding Power Source Specifications
| Equipment Name | Brand | Model | Welding Mode | Input | Communication |
|---|---|---|---|---|---|
| Welding Power Source | AOTAI | NBC-350 | Constant Voltage | 3 Phase 380V | EtherCAT |
| NBC-350RP Plus | Constant Voltage / Pulse | ||||
| NBC-500RP Plus | Constant Voltage / Pulse |
System Components
| Equipment Name | Brand | Model | Specification |
|---|---|---|---|
| Water Tank | JISI Custom | WRC-300C | Cooling Capacity: 1.7 kW (1 L/min); Water Pump Power: 370 W; Max. Pressure / Lift / Capacity: 0.9 MPa / 60 Hz / 9 L |
| Welding Gun | JISI Custom | AS02501W | Standard 3 m (Customizable); Air Cooling / Water Cooling |
| Light-duty Track | — | — | 6 m rails, 3 m magnetic track, no need for fixing, ready to use, customizable，easy deployment . |
