Gantry Mounted CollaborativeWelding Robots

Gantry-Mounted Collaborative Welding Robot

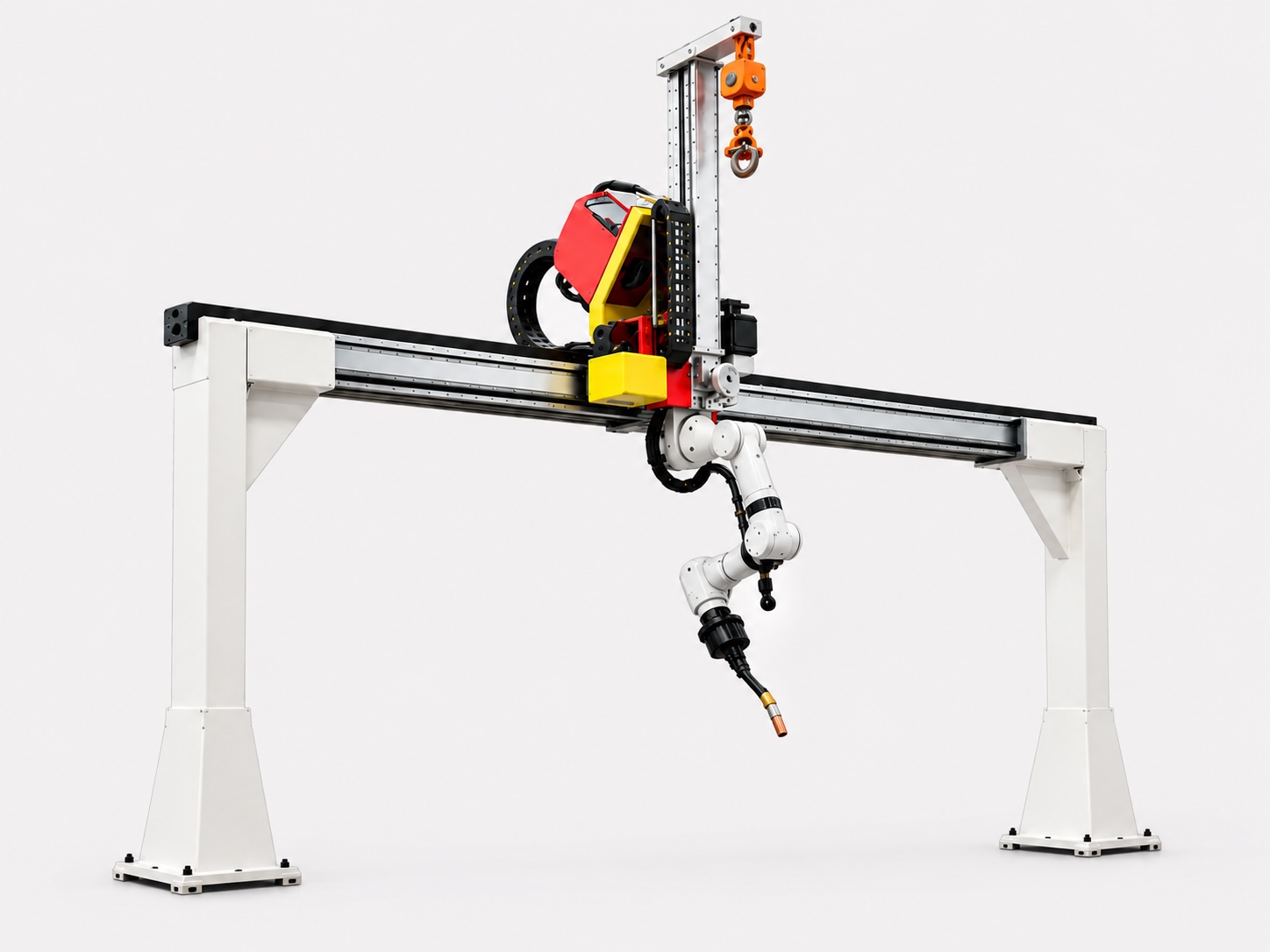

The JISI Gantry-Mounted Collaborative Welding Robot is an advanced robotic welding solution designed for steel structures, large metal components, and industrial fabrication applications.

Featuring a gantry-mounted structure and a 6-axis collaborative robot, the system extends the robot’s working range while reducing floor space occupied by the robot’s base. The overhead-mounted design enables flexible welding positioning and efficient coverage of large workpieces.

The system supports automated welding operations with stable robot movement and repeatable welding paths, helping manufacturers improve welding consistency, increase productivity, and reduce manual welding requirements.

Depending on production needs, the system can be integrated with MIG/MAG welding equipment, welding positioners, seam tracking systems, and customized fixtures to accommodate different workpiece sizes and welding processes.

With flexible configurations and engineering support, JISI provides customized robotic welding solutions for steel fabrication, construction machinery, heavy equipment manufacturing, and other industrial applications.

Product Features

• Extended Welding Coverage
  • The gantry-mounted structure extends the robot’s working range, enabling efficient welding of large and long metal components.
• Space-Saving Overhead Design
  • The overhead-mounted configuration reduces the floor space occupied by the robot’s base and improves workshop space utilization.
• Flexible Welding Positioning
  • The 6-axis collaborative robot provides flexible torch positioning for different weld joints and workpiece geometries.
• Consistent Welding Quality
  • Repeatable robotic motion and controlled welding parameters help maintain consistent weld quality and reduce manual welding variations.
• Intelligent Welding Options
  • Optional seam detection, laser seam tracking, and arc tracking functions can be integrated to support different welding requirements.
• Flexible Production & Quick Changeover
  • Suitable for different workpiece types and small-to-medium batch production, supporting flexible manufacturing requirements.
• Customized Welding Solutions
  • Gantry dimensions, robot models, welding equipment, positioners, and fixtures can be configured according to customer requirements.

Applications

• Steel Structures & Frames
• Large Metal Fabrications
• Heavy Equipment Components
• Construction Machinery
• Agricultural Machinery
• Industrial Equipment Frames
• Custom Metal Fabrication

6-Axis Robot Specifications

Robot Configuration: Standard teach pendant, drag teaching, graphical interface, optional magnetic base, and secondary development of welding process package.

Welding Power Source Specifications

System Components
