Mobile Lifting Collaborative Welding Robots

PRODUCT PARAMETERS

  • Product Name: Mobile Lifting Collaborative Welding Robots
  • Robot Type: 6-Axis Collaborative Robot
  • Payload: 3–20 kg
  • Working Radius: 705–1798 mm
  • Input: 3 Phase 380V
  • Communication: EtherCAT
  • Traveling & Lifting: 6+2 axes, 8 m track, 3 m lifting stroke, customizable
  • Application: Steel structures, boxes, frames and large metal components
Description
FAQs
Request A Quote

Description

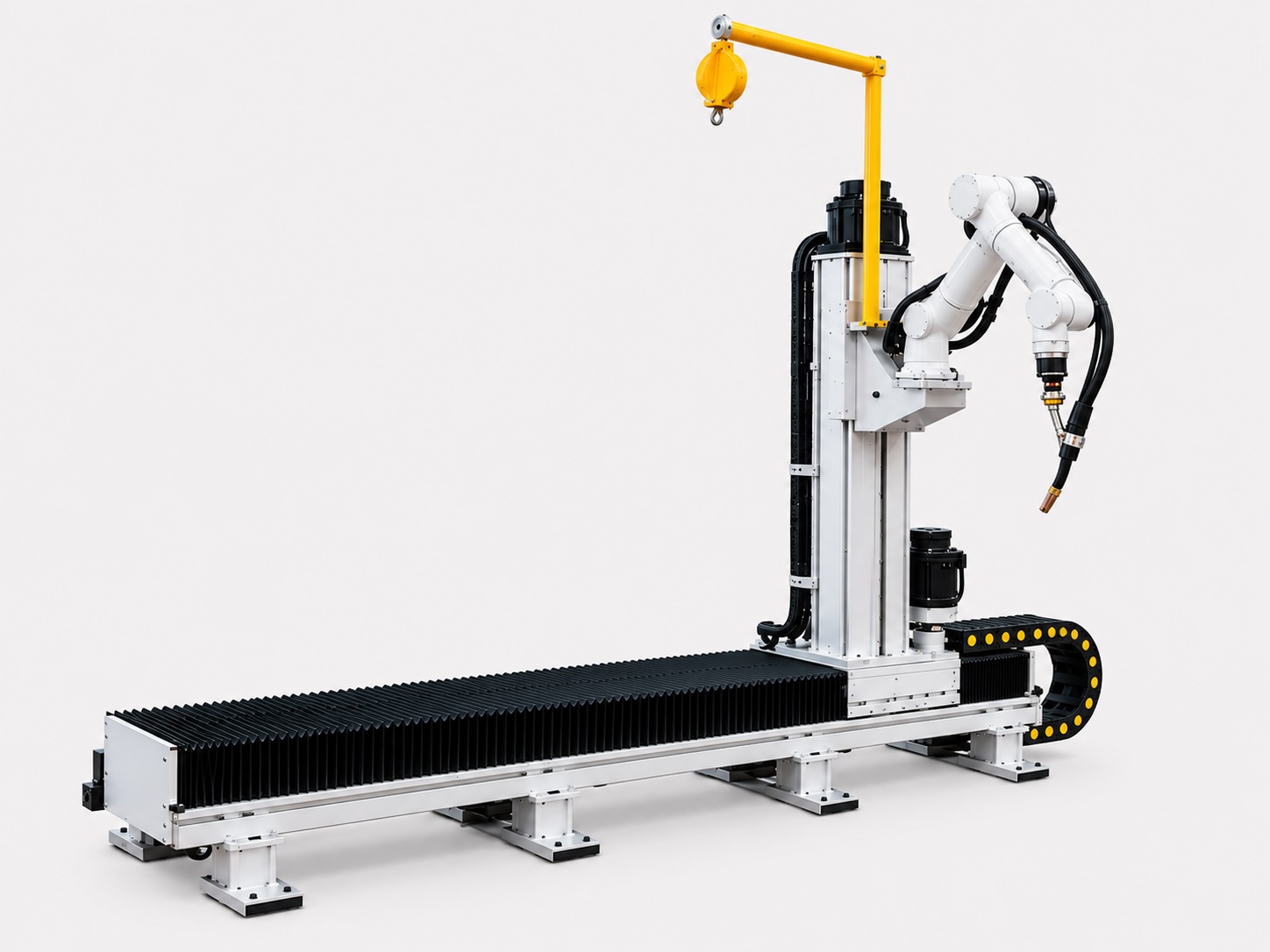

Mobile Lifting Collaborative Welding Robots

Mobile Lifting Collaborative Welding Robots combine traveling and lifting axes to extend the robot’s welding range. The system allows flexible adjustment of welding height and working position according to the location and size of the workpiece.

The rigid structure and precision rails provide smooth movement and reliable positioning. By reducing manual repositioning and repeated adjustments, the system supports more efficient continuous welding of large workpieces.

Product Features

  • Extended Working Range: Traveling and lifting axes extend the robot’s welding range.
  • Flexible Positioning: Flexible adjustment of welding height and working position according to the workpiece.
  • Stable Operation: Rigid structure and precision rails ensure smooth and reliable positioning.
  • Higher Productivity: Reduces manual repositioning and repeated adjustments to improve continuous welding efficiency.
  • Ideal for Large Workpieces: Suitable for steel structures, boxes, frames and large metal components.

Applications

  • Steel structures
  • Boxes
  • Frames
  • Large metal components

6-Axis Robot Specifications

Equipment NameBrandModelPayloadWorking Radius
6-Axis RobotROKAESR3-3/0.7C3 kg705 mm
SR5-5/0.9C5 kg919 mm
CR7-7/0.98C7 kg988 mm
CR5-5/1.4C5 kg1406 mm
CR12-12/1.4C12 kg1434 mm
CR20-20/1.8C20 kg1798 mm

Robot Configuration: Standard teach pendant, drag teaching, graphical interface, optional magnetic base, and secondary development of welding process package.

Welding Power Source Specifications

Equipment NameBrandModelWelding ModeInputCommunication
Welding Power SourceAOTAINBC-350Constant Voltage3 Phase 380VEtherCAT
NBC-350RP PlusConstant Voltage / Pulse
NBC-500RP PlusConstant Voltage / Pulse

System Components

Equipment NameBrandModelSpecification
Water TankJISI CustomWRC-300CCooling Capacity: 1.7 kW (1 L/min); Water Pump Power: 370 W; Max. Pressure / Lift / Capacity: 0.9 MPa / 60 Hz / 9 L
Welding GunJISI CustomAS02501WStandard 3 m (Customizable); Air Cooling / Water Cooling
Traveling and Lifting——6+2 axes; track length 8 m; lifting axis stroke 3 m; all customizable

FAQs

Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.

Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.

Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.

Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.

The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.

Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.

Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.

They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.

Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.

Our goal is to help customers achieve stable operation and efficient automation production.
