Basic Material Bin Workstation

PRODUCT PARAMETERS

  • Product Type: Basic Material Bin Workstation
  • Example Model: LXA-M01-R12-1300
  • Compatible Workpiece: Block Parts and Small Machining Components
  • Compatible Machine Tools: CNC Lathe and Vertical Machining Center
  • Machine Layout: 1V1 or 1V2
  • Robot Payload: 12 kg
  • Maximum Working Radius: 1300 mm
  • Workpiece Size: ≤120×70×120 mm
  • Workpiece Weight: ≤4 kg
  • Customization: Fixture Configuration and Workpiece Handling Solution
  • Location: China
Description
FAQs
Request A Quote

Description

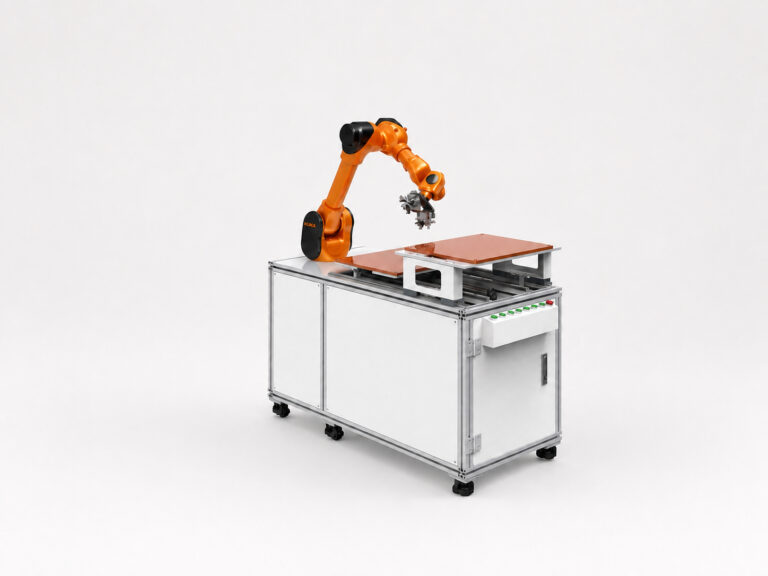

Basic Material Bin Workstation

The basic material bin workstation is designed for automated loading and unloading of small workpieces. It can be integrated with CNC lathes and vertical machining centers to improve machining automation and reduce manual handling workload.

The workstation supports flexible fixture replacement methods and can be configured according to different workpiece shapes and production requirements. It is suitable for handling block-shaped parts and other common machining components.

Applications

  • Small workpiece loading and unloading
  • CNC lathe automation
  • Vertical machining center automation
  • Block-shaped parts handling
  • Precision component handling

Product Features

  • Suitable for small workpiece automation
  • Compatible with multiple fixture configurations
  • Supports manual or electric fixture quick change
  • Compatible with CNC lathes and vertical machining centers
  • Supports 1V1 and 1V2 machine layouts
  • Compact structure for flexible production applications

Main Technical Data

Example ModelLXA-M01-R12-1300
Compatible Workpiece TypeBlock parts and other common machining parts
Compatible Machine ToolsCNC lathe / vertical machining center
Machine Layout1V1 / 1V2
Standard End-of-Arm ToolingOne set
Robot Payload12 kg
Maximum Working Radius1300 mm
Repeatability±0.03 mm
Protection RatingIP65–IP68
Workpiece Size≤120×70×120 mm
Workpiece Weight≤4 kg

Configuration Considerations

  • Actual capacity depends on the workpiece dimensions.
  • Other shaped products require engineering evaluation.
  • The fixture should be selected according to the actual workpiece structure.

FAQs

Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.

Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.

Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.

Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.

The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.

Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.

Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.

They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.

Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.

Our goal is to help customers achieve stable operation and efficient automation production.
