Shandong Jisi Intelligent Equipment Co., Ltd.
LXA-LAUM02 Advanced Vertical Storage Workstation
PRODUCT PARAMETERS
- Model: LXA-M01P-R12-1300
- Product Type: Advanced vertical storage workstation
- Tray System: Self-centering vise and zero-point positioning system
- Tray Capacity: ≤20, depending on actual workpiece dimensions
- Gripper Quick Change: Manual or electric
- Compatible Machine Tools: CNC lathe and vertical machining center
- Machine Layout: 1V1 or 1V2
- Robot Specifications: 12 kg payload, 1300 mm working radius, ±0.03 mm repeatability
- Workpiece Range: ≤180 × 100 × 120 mm, weight ≤4 kg
- Location: China
Description
FAQs
Request A Quote
Description

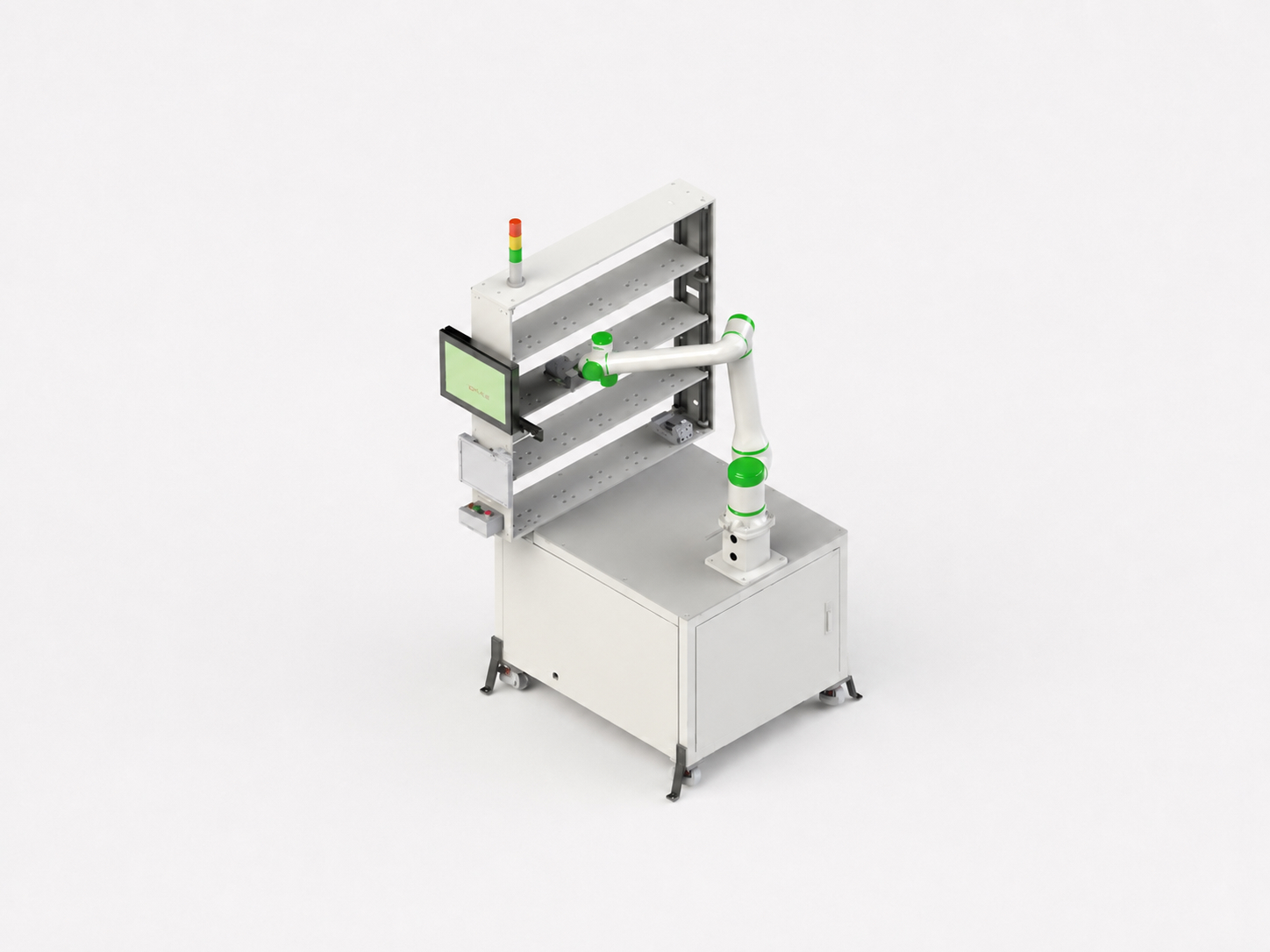

LXA-LAUM02 Advanced Vertical Storage Workstation
The LXA-LAUM02 Advanced Vertical Storage Workstation combines a collaborative robot with a multi-layer vertical storage system for automated workpiece handling. Its zero-point tooling clamping method helps avoid direct clamping damage to the workpiece surface and reduces positioning inaccuracies during repeated loading and unloading.
The workstation uses a standardized automation program and matrix four-point teaching positions to simplify production changeovers and shorten commissioning time. Manual or electric gripper quick-change configurations are available according to the actual application requirements.
Applications
- Small-batch and multi-process machining
- Automated loading and unloading for CNC lathes
- Automated loading and unloading for vertical machining centers
- Long-duration unattended machining applications
- Flexible production involving different machining processes
Product Features
- Multi-layer vertical storage structure for organized workpiece handling
- Zero-point positioning system for stable and repeatable workpiece positioning
- Optional manual or electric gripper quick-change system
- Upper-level computer control function for workstation management
- Matrix four-point teaching positions for faster production changeovers
- Collaborative robot configuration for human-robot collaborative operation
- Compatible with barcode scanners and RFID readers for machining status monitoring
- Suitable for 1V1 and 1V2 machine tool layouts
Main Technical Data
| Item | Specification |
|---|---|
| Equipment Model | LXA-M01P-R12-1300 |
| Tray and Positioning System | Self-centering vise and zero-point positioning system |
| Equipment Feature | Upper-level computer control function |
| Tray Capacity | ≤20 |
| Gripper Quick-change Method | Manual or electric |
| Compatible Gripper Type | Single-gripper two-finger or dual-gripper two-finger |
| Compatible Workpiece Type | Block-shaped workpieces used with vises and other zero-point tooling |
| Compatible Machine Tools | CNC lathe or vertical machining center |
| Machine Tool Layout | 1V1 or 1V2 |
| Standard End Gripper | One set |
| Robot Rated Payload | 12 kg |
| Maximum Working Radius | 1300 mm |
| Repeatability | ±0.03 mm |
| Protection Rating | IP65–IP68 |
| Maximum Workpiece Dimensions | ≤180 × 100 × 120 mm |
| Maximum Workpiece Weight | ≤4 kg |
Configuration Information
- The listed tray capacity depends on the actual workpiece dimensions.
- Workpieces with shapes other than common block forms require engineering evaluation.
- A 1V3 layout requires simulation according to the machine tool dimensions and site arrangement.
- The workstation can also be configured with an R20 robot featuring a 20 kg payload and a 1800 mm working radius.
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
