Rotary Material Bin Workstation
PRODUCT PARAMETERS
- Product Type: Rotary Material Bin Workstation
- Model: LXA-L03-08-R12-1300
- Number of Stations: 8, 10 or 12
- Single Station Height: 500 mm
- Fixture Quick Change: Manual or Electric
- Compatible Workpieces: Disc, Round and Ring-Shaped Workpieces
- Compatible Machine Tools: CNC Lathe and Vertical Machining Center
- Machine Layout: 1V1 or 1V2
- Robot Payload: 12 kg
- Maximum Working Radius: 1300 mm
- Repeatability: ±0.03 mm
- Protection Rating: IP65–IP68
- External Gripping Diameter: Ø35–Ø135 mm
Description
FAQs
Request A Quote
Description

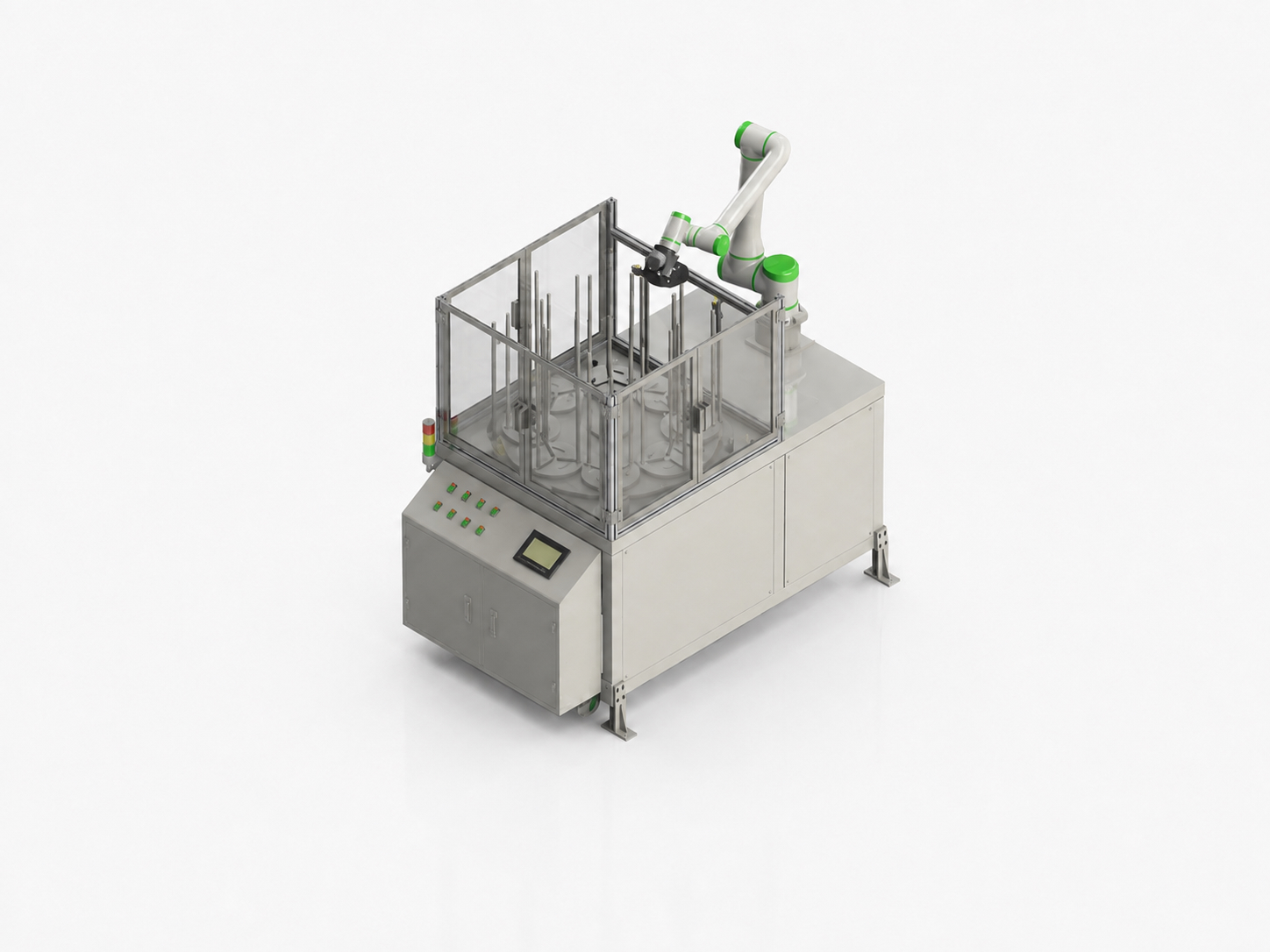

Rotary Material Bin Workstation
The rotary material bin workstation is designed for automated loading and unloading of disc, round, and ring-shaped workpieces. Its compact structure is suitable for production areas with limited floor space.
The workstation can be connected with CNC lathes or vertical machining centers. It supports multiple station quantities, manual or electric fixture quick change, and different end-of-arm gripper configurations according to the workpiece shape and handling requirements.
Applications
- Loading and unloading of disc-shaped workpieces
- Loading and unloading of round workpieces
- Loading and unloading of ring-shaped workpieces
- CNC lathe automation
- Vertical machining center automation
- Compact machine tending workstations
Compatible Gripper Configurations
- Single gripper with three fingers
- Single gripper with two fingers
- Dual gripper with three fingers
- Dual gripper with two fingers
Product Features
- Available with 8, 10, or 12 material stations
- Compact structure for limited production space
- Manual or electric fixture quick-change options
- Compatible with multiple gripper configurations
- Supports 1V1 and 1V2 machine layouts
- Suitable for disc, round, and ring-shaped workpieces
- Helps improve machine utilization and production efficiency
- Helps reduce manual handling workload
Main Technical Data
| Model | LXA-L03-08-R12-1300 |
|---|---|
| Number of Stations | 8 / 10 / 12 |
| Single Station Height | 500 mm |
| Fixture Quick-Change Type | Manual or electric |
| Compatible Grippers | Single three-finger, single two-finger, dual three-finger, or dual two-finger gripper |
| Compatible Workpieces | Disc, round, and ring-shaped workpieces |
| Compatible Machine Tools | CNC lathe / vertical machining center |
| Machine Layout | 1V1 / 1V2 |
| Standard End-of-Arm Tooling | One set |
| Rated Robot Payload | 12 kg |
| Maximum Working Radius | 1300 mm |
| Repeatability | ±0.03 mm |
| Protection Rating | IP65–IP68 |
| External Gripping Diameter | Ø35–Ø135 mm |
| Internal Expanding Diameter | Ø55–Ø155 mm |
| Maximum Workpiece Outer Diameter | 190 mm |
Configuration Considerations
- A 1V3 layout requires simulation according to the machine tool models and workstation space.
- For a 1V3 layout, the robot may need to be arranged separately.
- The gripper and material station configuration should be selected according to the actual workpiece dimensions and shape.
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
