Basic Material Bin Workstation
PRODUCT PARAMETERS
- Product Type: Basic Material Bin Workstation
- Example Model: LXA-L01-F-R12-1300
- Tray Configuration: Single Tray, Double Tray or Triple Tray
- Compatible Workpiece: Bar Stock
- Compatible Machine Tools: CNC Lathe and Vertical Machining Center
- Machine Layout: 1V1 or 1V2
- Robot Payload: 12 kg or 20 kg
- Maximum Working Radius: 1300 mm or 1800 mm
- Maximum Workpiece Height: 140 mm
- Maximum Workpiece Diameter: 60 mm or 80 mm
- Maximum Workpiece Weight: 3 kg or 6 kg
- Location: China
Description
FAQs
Request A Quote
Description
Basic Material Bin Workstation

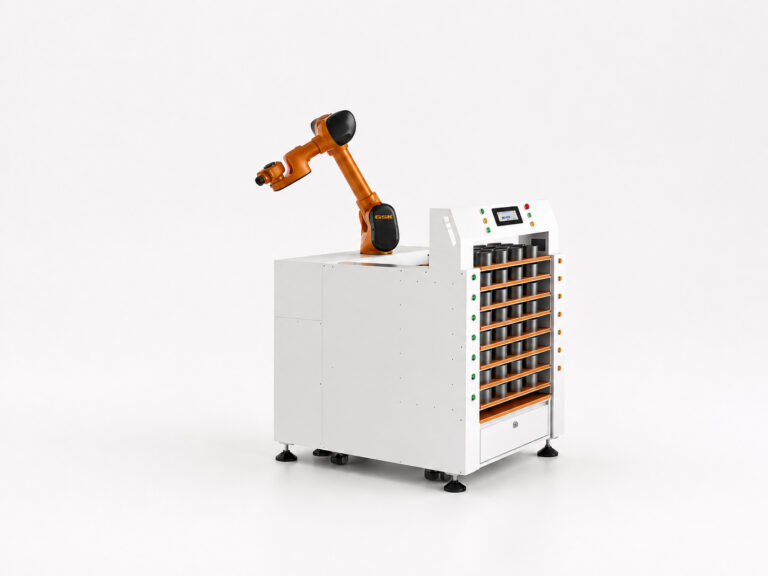

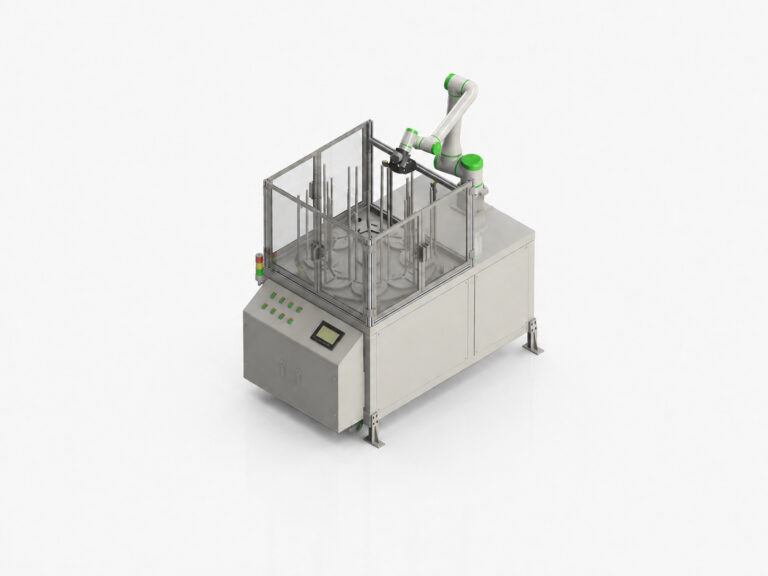

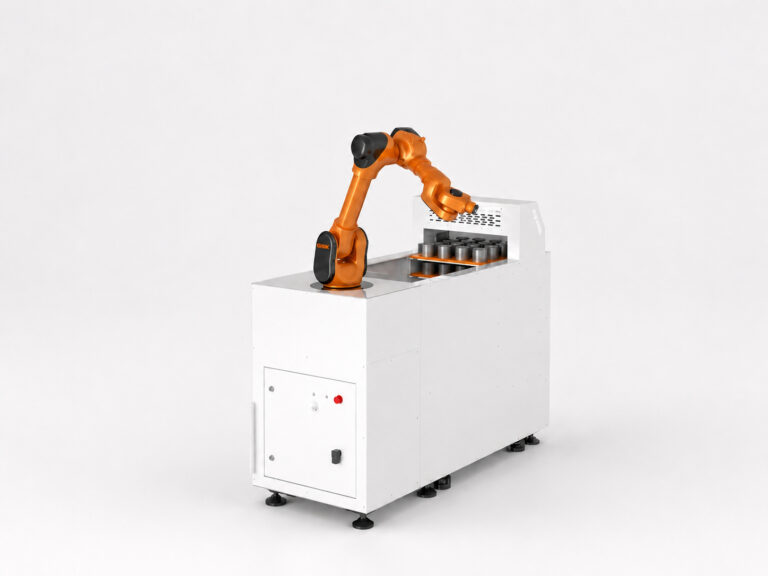

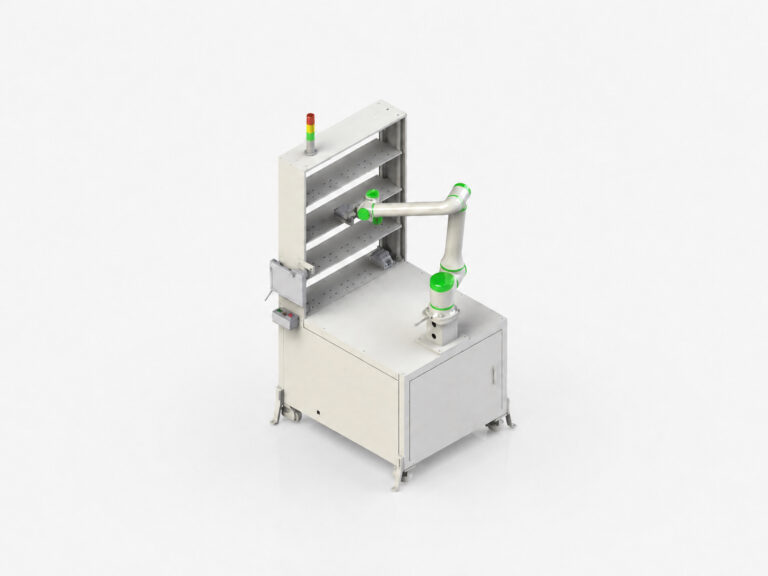

The basic material bin workstation is designed for loading and unloading bar stock. It can be configured with CNC lathes or vertical machining centers according to the workpiece size, robot reach, and machine layout.

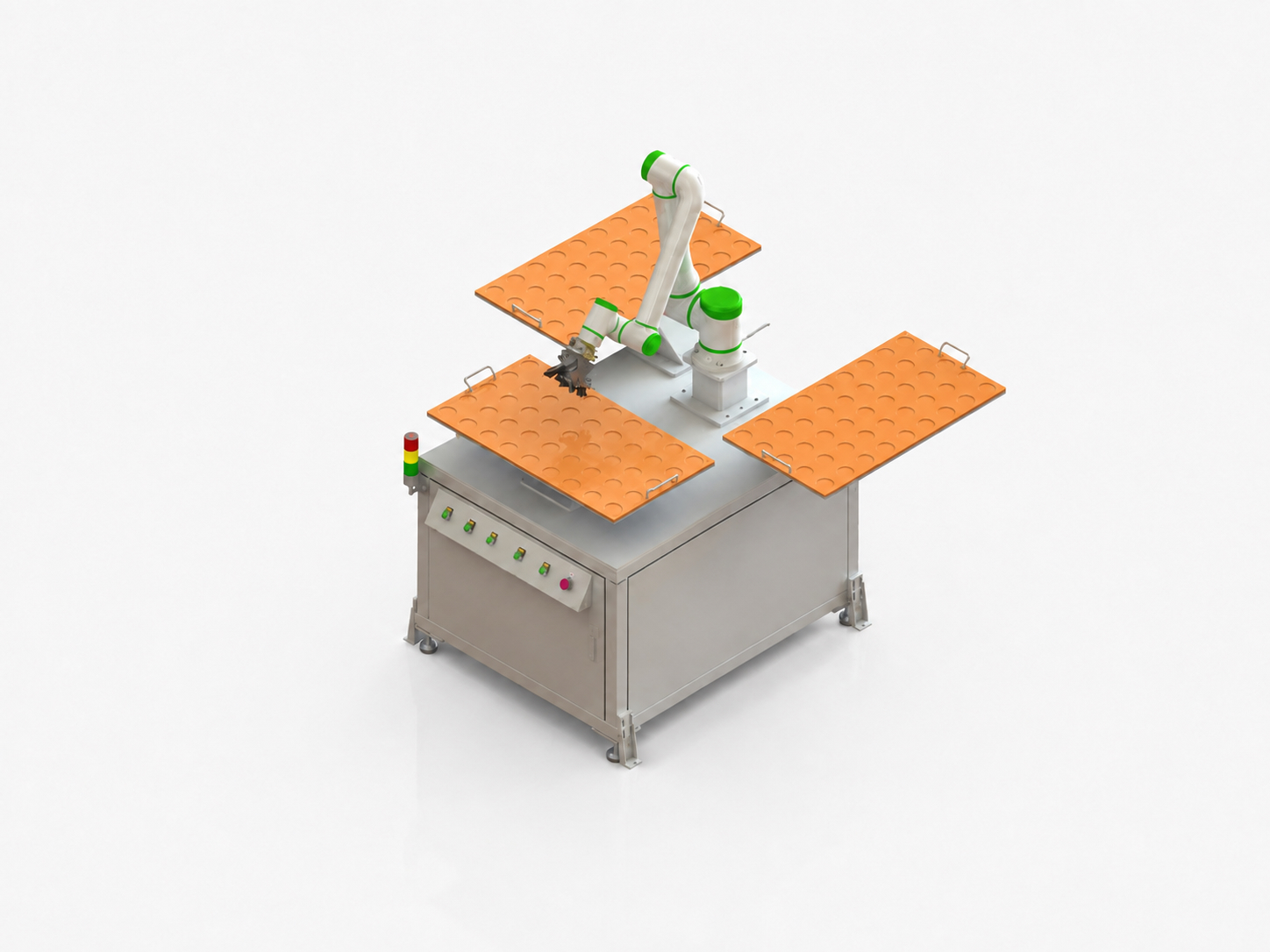

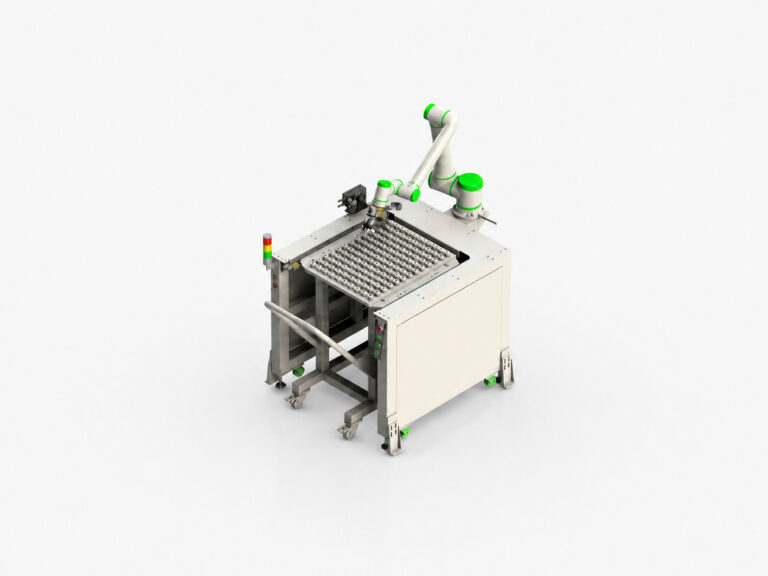

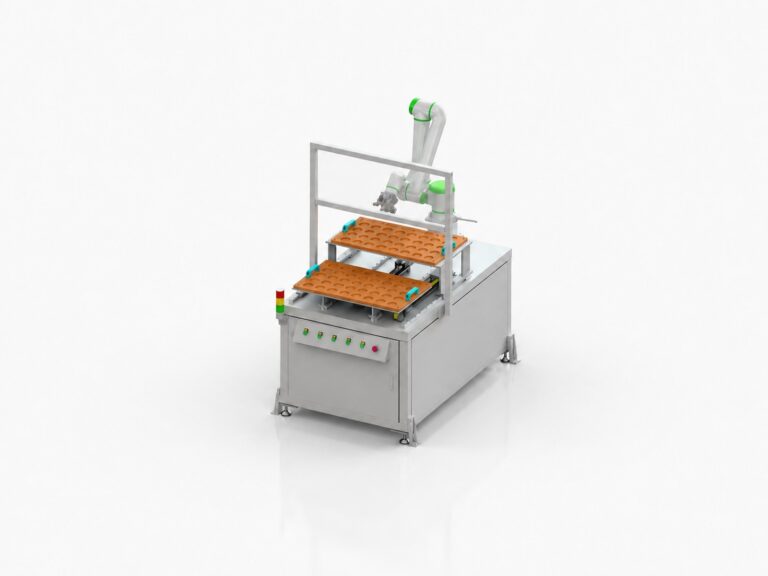

The series includes single-tray, double-tray, and triple-tray configurations. The material tray supports positioning and quick replacement, while the fixture can be changed manually or electrically.
Applications
- Bar stock loading and unloading
- CNC lathe machine tending
- Vertical machining center machine tending
- 1V1 single-machine layouts
- 1V2 dual-machine layouts
Available Tray Configurations
- Single-tray configuration
- Double-tray configuration
- Triple-tray configuration
Compatible Gripper Types
- Single three-finger gripper
- Single two-finger gripper
- Dual three-finger gripper
- Dual two-finger gripper
Product Features
- Positioning and quick-change material tray
- Material tray capacity of up to 45 pieces, depending on workpiece dimensions
- Manual or electric fixture quick change
- Compatible with multiple gripper configurations
- Available with 12 kg or 20 kg robot payload configurations
- Supports 1V1 and 1V2 machine layouts
- Standard configuration includes one set of end-of-arm tooling
Main Technical Data
| Parameter | 12 kg Configuration | 20 kg Configuration |
|---|---|---|
| Example Model | LXA-L01-F-R12-1300 | Not specified |
| Material Tray Type | Positioning and quick-change tray | |
| Material Tray Capacity | ≤45 pieces | |
| Fixture Quick-Change Type | Manual or electric | |
| Compatible Workpiece Type | Bar stock | |
| Compatible Machine Tools | CNC lathe / vertical machining center | |
| Machine Layout | 1V1 / 1V2 | |
| Standard End-of-Arm Tooling | One set | |
| Rated Robot Payload | 12 kg | 20 kg |
| Maximum Working Radius | 1300 mm | 1800 mm |
| Repeatability | ±0.03 mm | ±0.05 mm |
| Protection Rating | IP65–IP68 | |
| Maximum Workpiece Height | ≤140 mm | |
| Maximum Workpiece Diameter | ≤60 mm | ≤80 mm |
| Maximum Workpiece Weight | ≤3 kg | ≤6 kg |
Model Identification
- LXA-L01: Basic material bin series
- F: Single-tray configuration
- D: Double-tray configuration
- T: Triple-tray configuration
- R12-1300: 12 kg robot payload and 1300 mm working radius
Configuration Considerations
- Actual tray capacity depends on the workpiece dimensions.
- The illustrated fixture and tray are suitable for short bar stock.
- Other workpiece shapes require fixtures and trays designed according to their actual structure.
- A 1V3 layout requires simulation according to the machine tool dimensions and workstation layout.
- For a 1V3 layout, the robot may need to be arranged separately.
- The listed workpiece weight applies to a dual-gripper configuration.
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
