Dual Sliding Table Material Bin Workstation
PRODUCT PARAMETERS
- Product Type: Dual Sliding Table Material Bin Workstation
- Models: LXA-L02-Q-R12-1300, LXA-L02-D-R20-1800
- Drive Type: Pneumatic or Electric
- Tray Capacity: Up to 45 Pieces, Depending on Workpiece Dimensions
- Fixture Quick Change: Manual or Electric
- Compatible Workpiece: Bar Stock
- Compatible Machine Tools: CNC Lathe and Vertical Machining Center
- Maximum Working Radius: 1300 mm or 1800 mm
- Maximum Workpiece Height: 100 mm
- Maximum Workpiece Diameter: 60 mm or 80 mm
Description
FAQs
Request A Quote
Description

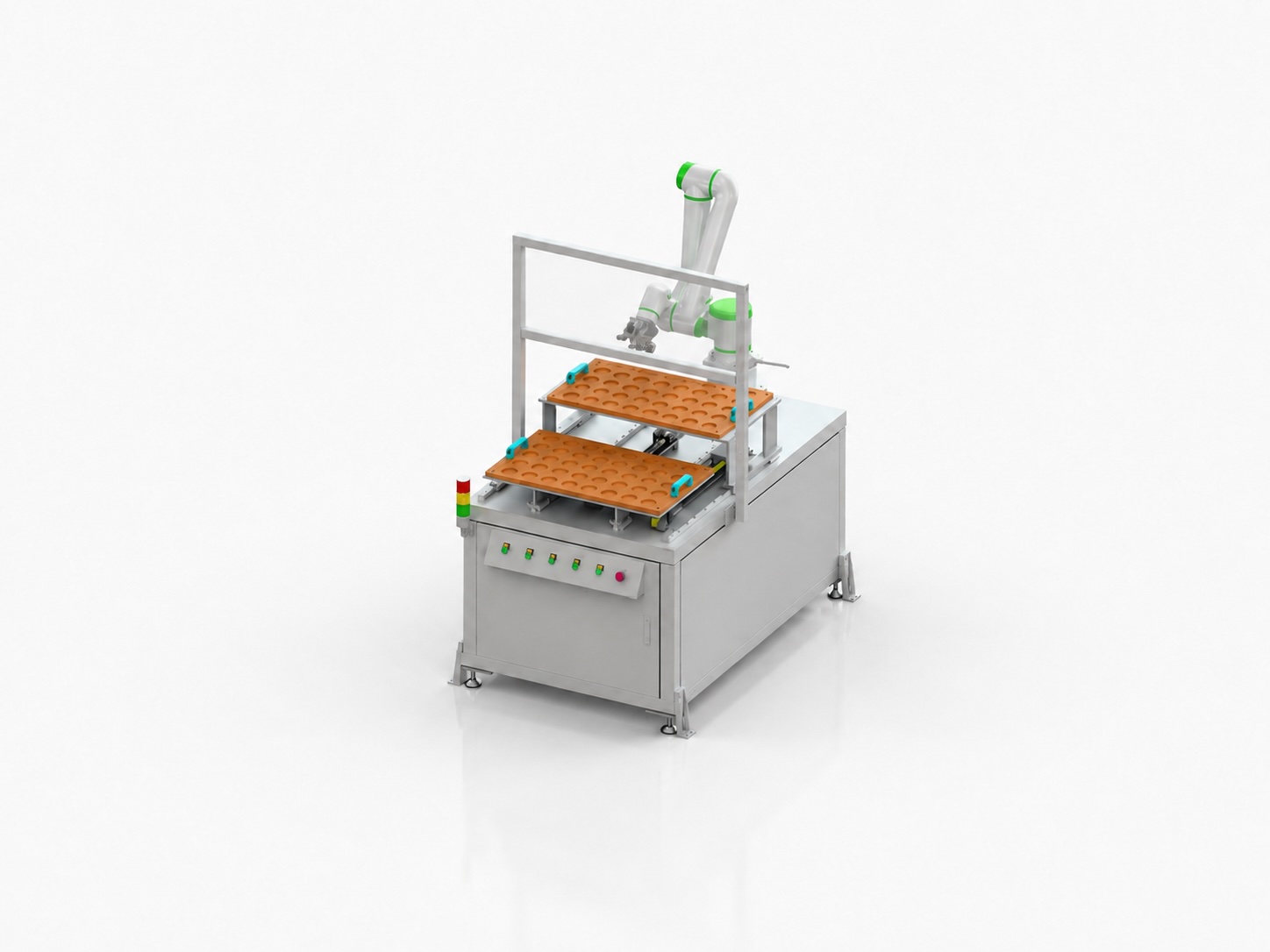

Dual Sliding Table Material Bin Workstation
The dual sliding table material bin workstation is designed for robotic loading and unloading of bar stock. It can be configured for CNC lathes and vertical machining centers, with support for 1V1 and 1V2 machine layouts.
The workstation is available with pneumatic or electric drive configurations. The material trays support positioning and quick replacement, while the fixture system can be configured with manual or electric quick-change functions.
Applications
- Automatic loading and unloading of bar stock
- CNC lathe loading and unloading
- Vertical machining center loading and unloading
- 1V1 single-machine workstation layout
- 1V2 dual-machine workstation layout
Compatible Gripper Configurations
- Single gripper with three fingers
- Single gripper with two fingers
- Dual gripper with three fingers
- Dual gripper with two fingers
Product Features
- Dual sliding table material storage structure
- Material tray positioning and quick-change design
- Manual or electric fixture quick-change options
- Material tray capacity of up to 45 pieces, depending on workpiece dimensions
- Compatible with bar stock loading and unloading
- Available with 12 kg and 20 kg robot payload configurations
- Maximum robot working radius of 1300 mm or 1800 mm
- Standard configuration includes one set of end-of-arm tooling
Main Technical Data
| Parameter | LXA-L02-Q-R12-1300 | LXA-L02-D-R20-1800 |
|---|---|---|
| Drive Type | Pneumatic | Electric |
| Material Tray Type | Positioning and quick-change tray | |
| Material Tray Capacity | ≤45 pieces | |
| Fixture Quick-Change Type | Manual or electric | |
| Compatible Workpiece Type | Bar stock | |
| Compatible Machine Tools | CNC lathe / vertical machining center | |
| Machine Layout | 1V1 / 1V2 | |
| Standard End-of-Arm Tooling | One set | |
| Rated Robot Payload | 12 kg | 20 kg |
| Maximum Working Radius | 1300 mm | 1800 mm |
| Repeatability | ±0.03 mm | ±0.05 mm |
| Protection Rating | IP65–IP68 | |
| Maximum Workpiece Height | ≤100 mm | |
| Maximum Workpiece Diameter | ≤60 mm | ≤80 mm |
| Maximum Workpiece Weight | ≤3 kg | ≤6 kg |
Configuration Considerations
- Actual tray capacity depends on the dimensions of the workpiece.
- The illustrated fixture and tray configuration is suitable for short bar stock.
- Workpieces with other shapes require fixtures and trays designed according to their actual structure.
- A 1V3 layout requires workstation simulation based on the machine tool models and a separately arranged robot.
- The listed maximum workpiece weight applies to a dual-gripper configuration.
