Bevel Cutting Machine
PRODUCT PARAMETERS
- Product Name: Bevel Cutting Machine
- Power Supply: 380V / 50Hz Three-phase AC
- Total Motor Power: 6.59 kW
- Spindle Speed: 1500 r/min
- Beveling Speed: 0.7–1.5 m/min
- Plate Thickness: 4–80 mm
- Beveling Angle: 0°–75° Adjustable
- Cutter Head Diameter: 80 mm
Description
FAQs
Request A Quote
Description

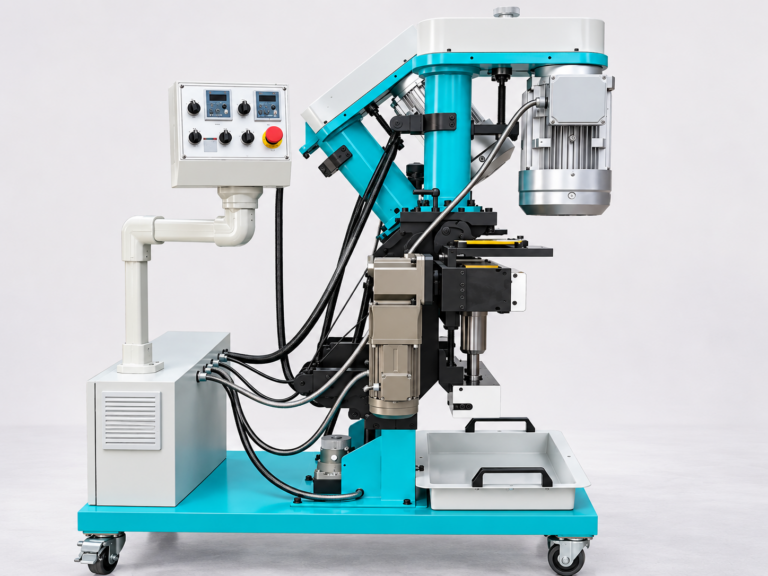

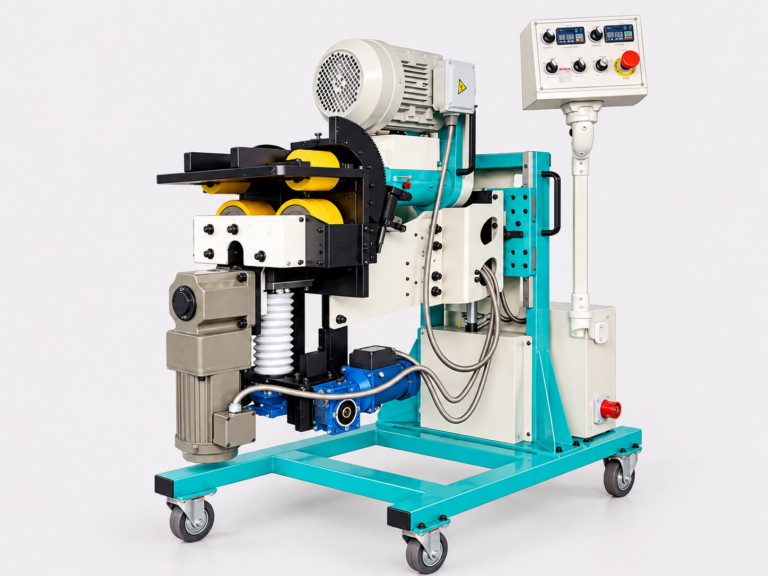

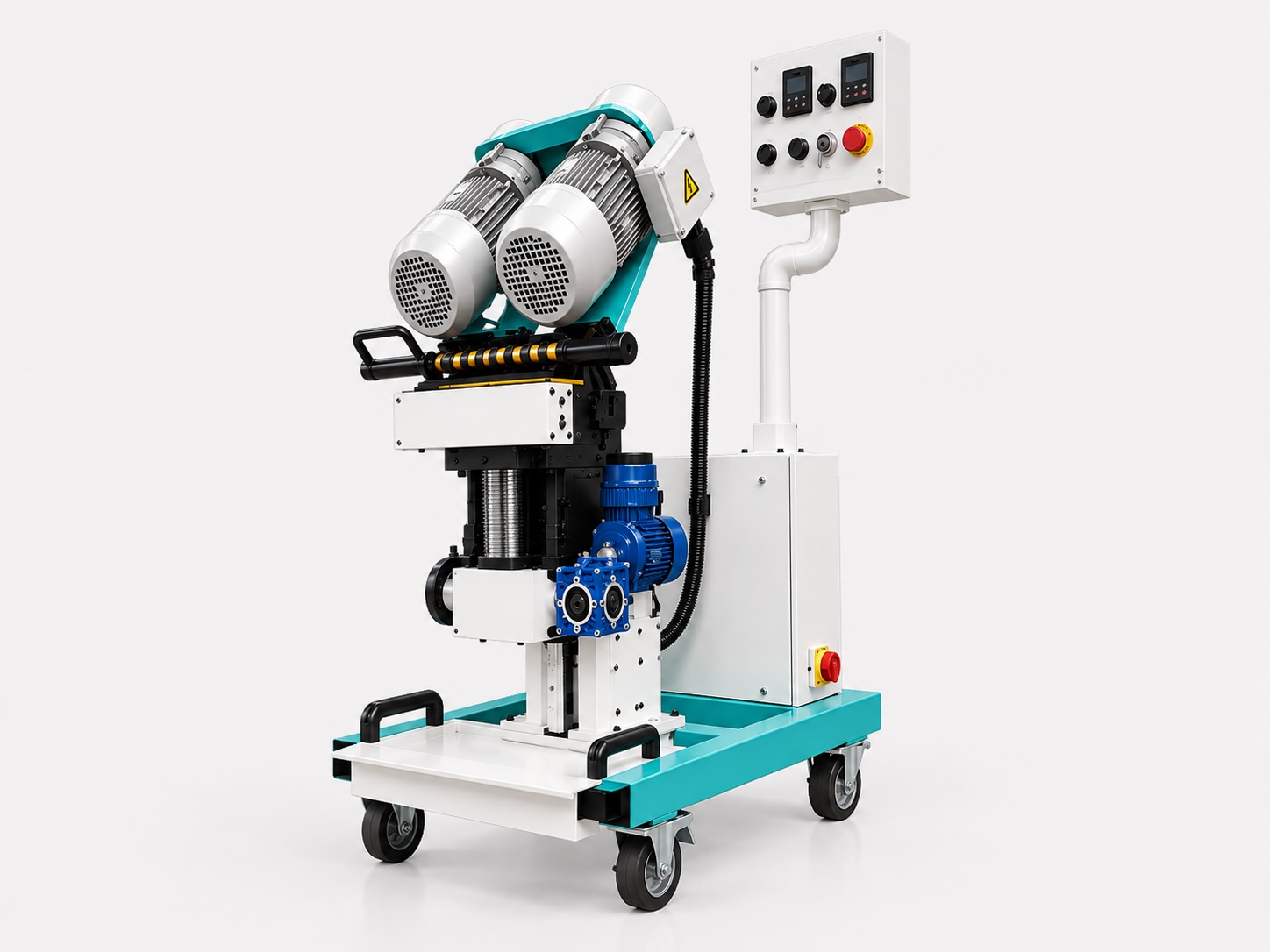

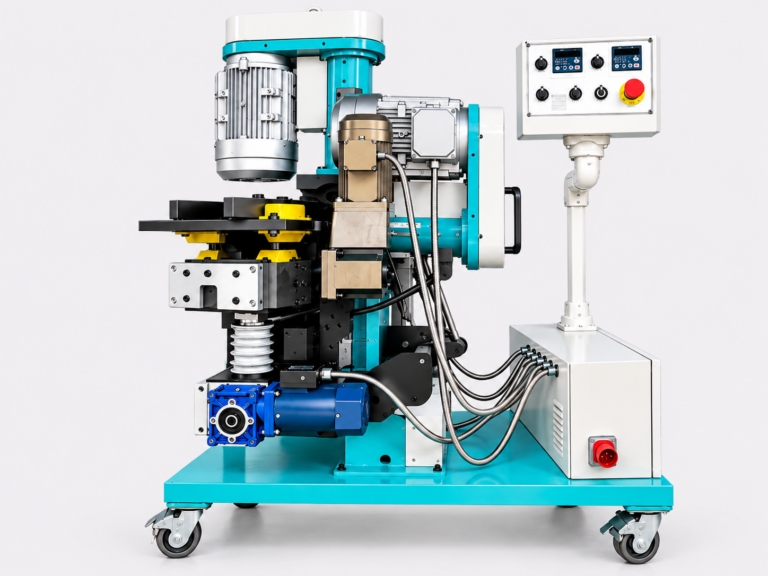

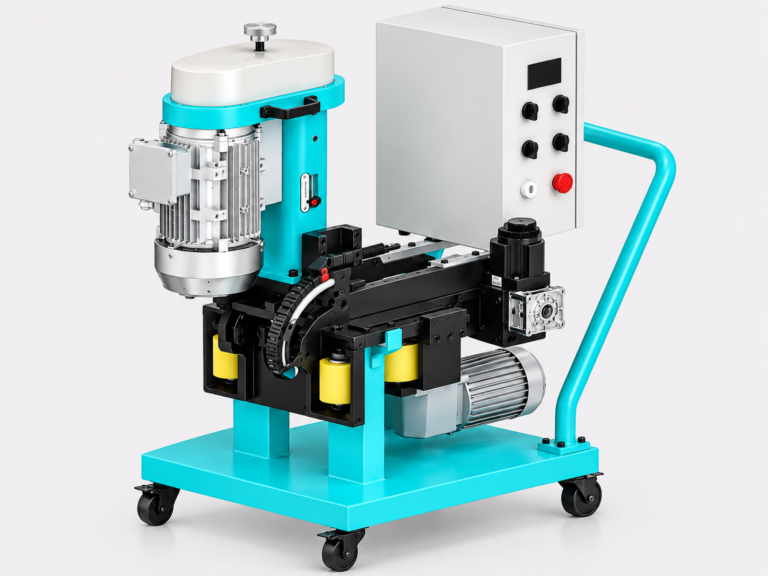

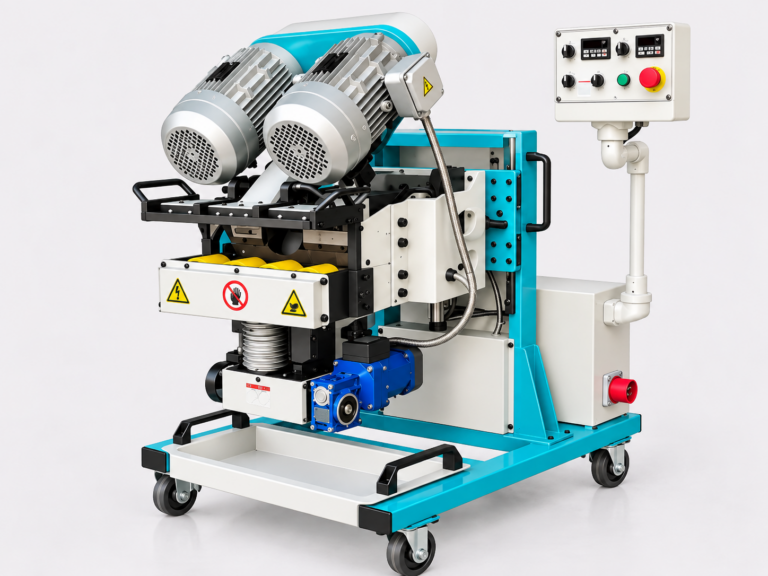

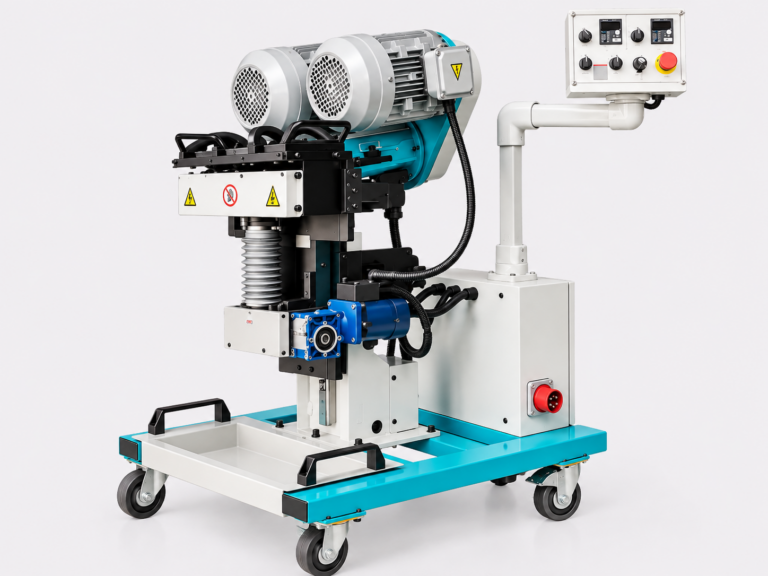

Bevel Cutting Machine
Bevel Cutting Machine is designed for fast and efficient edge preparation of metal plates. It provides stable cutting angles and smooth bevel surfaces, helping ensure consistent joint preparation for subsequent welding operations.
The machine supports flexible adjustment according to different workpieces and welding requirements. Its mobile structure makes it easy to move between different workstations, making it suitable for workshop applications involving carbon steel, stainless steel, alloy steel, cast iron and aluminum plates.
Product Features
- Efficient Beveling: Fast and efficient edge preparation.
- Consistent Bevel Quality: Stable angles and smooth bevel surfaces.
- Flexible Adjustment: Adjustable for different workpieces and welding requirements.
- Easy Mobility: Mobile design for flexible workshop operation.
- Weld Preparation: Provides consistent joint preparation for subsequent welding.
Product Specifications
| Item | Specification |
|---|---|
| Power Supply | 380V / 50Hz Three-phase AC |
| Motor Power | Total Power: 6.59 kW; Cutting Main Motor Power: 3 kW × 2; Lifting Motor Power: 0.2 kW |
| Spindle Speed | 1500 r/min |
| Beveling Speed | 0.7–1.5 m/min (Adjustable by frequency converter) |
| Clamping Plate Thickness | 4–80 mm |
| Beveling Angle | 0°–75° (Adjustable) |
| Cutter Head Diameter | 80 mm (Maximum beveling width: 80 mm) |
| Insert Specification | Cutter Head: 7 pieces, square inserts with 8 cutting edges |
| Beveling Types | K / V / X / Y Type Bevel + Upper Bevel + Side Bevel |
| Height Adjustment System | Adjustable height (electric lifting + spring floating lifting) |
| Clamping Control | Electric automatic clamping of workpiece (ensures clamping force) |
| Transmission & Clamping Unit | Equipped with 11 sets of transmission wheels (7 upper + 4 lower) |
| Processing Method | Milling |
| Applicable Materials | Carbon Steel, Stainless Steel, Alloy Steel, Cast Iron, Aluminum Plates, etc. |
| Bevel Surface Finish | Ra 3.2–6.3 |
Applications
- Metal plate edge preparation
- Welding joint preparation
- Carbon steel plate processing
- Stainless steel plate processing
- Alloy steel plate processing
- Cast iron processing
- Aluminum plate processing
