YS-200D
PRODUCT PARAMETERS
- Product Name: YS-200D Upper & Lower Beveling Machine
- Model: YS-200D
- Plate Thickness: 4–80 mm
- Upper Bevel Angle: 0°–90° Adjustable
- Lower Bevel Angle: 0°–50° Adjustable
- Beveling Feed Speed: 0.1–1.5 m/min
- Bevel Width: 0–85 mm
- Bevel Types: K / V / X / Y / U / R + Upper / Lower / 0° Side Bevel
- Clamping: Electric Automatic Plate Clamping
- Processing Method: Milling
- Customization: Available according to application requirements
Description
FAQs
Request A Quote
Description

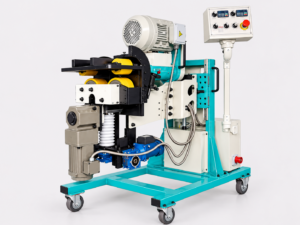

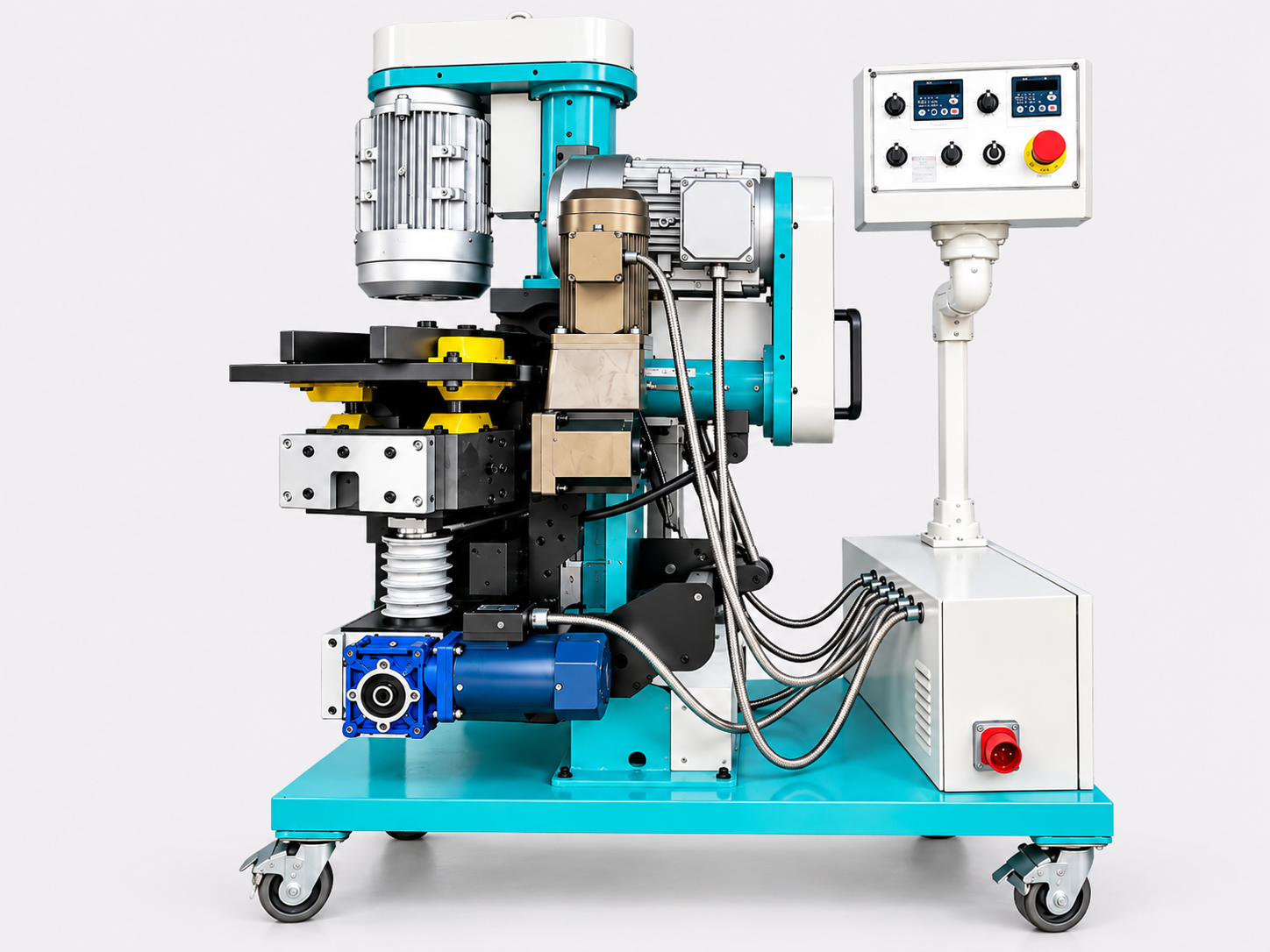

YS-200D Upper & Lower Beveling Machine
YS-200D is an upper and lower beveling machine designed for efficient plate edge preparation and industrial welding preparation applications.
The machine supports plate thicknesses from 4 to 80 mm and can perform both upper and lower beveling. The upper bevel angle can be adjusted from 0° to 90°, while the lower bevel angle can be adjusted from 0° to 50°.
YS-200D adopts a milling processing method and supports variable-frequency adjustable beveling feed speed from 0.1 to 1.5 m/min.
The machine is equipped with electric automatic plate clamping and a multi-wheel transmission system for stable and continuous processing.
Customization is available according to application requirements.
Product Features
- Upper & Lower Beveling: Supports both upper and lower plate edge preparation.
- Wide Plate Thickness Range: Suitable for 4–80 mm plate thickness.
- Adjustable Upper Bevel: Upper bevel angle from 0° to 90°.
- Adjustable Lower Bevel: Lower bevel angle from 0° to 50°.
- Multiple Groove Types: Supports K / V / X / Y / U / R bevels, upper bevel, lower bevel and 0° side bevel.
- Large Bevel Width: Bevel width from 0 to 85 mm.
- Automatic Clamping: Electric automatic plate clamping.
- Variable Feed Speed: 0.1–1.5 m/min, adjustable by variable frequency.
- Milling Process: Provides stable and consistent bevel surface quality.
- Customizable: Configuration can be customized according to application requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | YS-200D |
| Product Type | Upper & Lower Beveling Machine |
| Power Supply | 380V / 50Hz, 3-Phase AC |
| Total Motor Power | 8.99 kW |
| Main Spindle Motor Power | 4 kW × 2 |
| Travel Motor Power | 0.4 kW × 2 |
| Clamping Motor Power | 0.12 kW |
| Spindle Speed | 1440 rpm |
| Beveling Feed Speed | 0.1–1.5 m/min, Variable-Frequency Adjustable |
| Applicable Plate Thickness | 4–80 mm |
| Upper Bevel Angle | 0°–90°, Spindle Position / Angle Adjustable |
| Lower Bevel Angle | 0°–50°, Adjustable |
| Clamping Method | Electric Automatic Plate Clamping |
| Transmission / Clamping Assembly | 21 Transmission Wheels (12 Upper + 9 Lower) |
| Cutter Diameter | 80 mm |
| Number of Inserts | 2 / 7 pcs |
| Working Height | 850 mm |
| Bevel Width | 0–85 mm |
| Bevel Types | K / V / X / Y / U / R Bevels + Upper Bevel + Lower Bevel + 0° Side Bevel |
| Processing Method | Milling |
| Net Weight | 500 kg |
| Bevel Surface Roughness | Ra 3.2–6.3 |
Applicable Materials
- Carbon Steel
- Stainless Steel
- Alloy Steel
- Cast Iron
- Copper Plate
- Aluminum Plate
Applications
- Upper and lower plate beveling
- Double-side edge preparation
- Welding preparation
- K / V / X / Y / U / R groove preparation
- Heavy plate processing
- Steel structure fabrication
- Industrial metal processing
