YS-80G
PRODUCT PARAMETERS
- Product Name: YS-80G Portable Pipe End Beveling Machine
- Model: YS-80G
- Applicable Thickness: 6–90 mm
- Applicable Pipe Diameter: ≥ Ø850 mm
- Applicable Pipe Height: >350 mm
- Beveling Angle: 0°–90° Adjustable
- Beveling Feed Speed: 0.7–1.5 m/min
- Travel Speed: 0.2–1.5 m/min
- Max. Bevel Width: 0–15 mm
- Processing Method: Milling
- Customization: Available according to application requirements
Description
FAQs
Request A Quote
Description

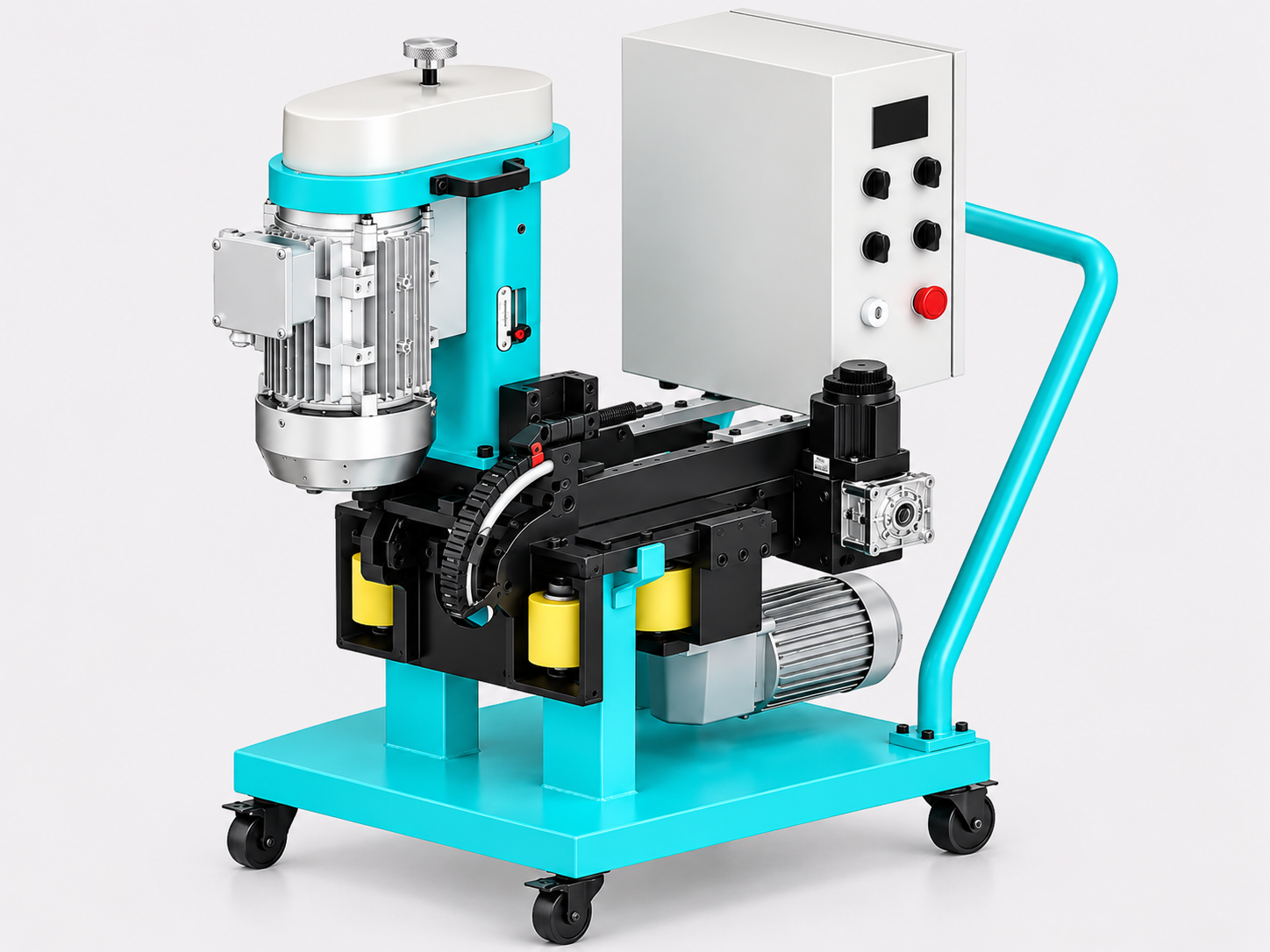

YS-80G Portable Pipe End Beveling Machine
YS-80G is a portable pipe end beveling machine designed for large-diameter pipe and heavy-duty metal edge preparation.
The machine adopts a milling processing method and is suitable for pipes with a diameter of Ø850 mm and above. It supports plate thicknesses from 6 to 90 mm and pipe heights greater than 350 mm.
The beveling angle can be adjusted from 0° to 90°, allowing the machine to meet different welding preparation and machining requirements.
With adjustable beveling feed speed and travel speed, YS-80G provides flexible operation for different materials and workpiece conditions.
Customization is available according to application requirements.
Product Features
- Large-Diameter Pipe Processing: Suitable for pipes with a diameter of Ø850 mm and above.
- Wide Bevel Angle Range: Adjustable bevel angle from 0° to 90°.
- Heavy-Duty Processing: Suitable for material thicknesses from 6 to 90 mm.
- Variable Feed Speed: Beveling feed speed from 0.7 to 1.5 m/min.
- Adjustable Travel Speed: Travel speed from 0.2 to 1.5 m/min.
- Milling Process: Provides stable and consistent bevel surface quality.
- Wide Material Compatibility: Suitable for carbon steel, stainless steel, alloy steel, cast iron and aluminum.
- Portable Structure: Designed for flexible pipe beveling applications.
- Customizable: Configuration can be customized according to application requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | YS-80G |
| Product Type | Portable Pipe End Beveling Machine |
| Power Supply | 380V / 50Hz, 3-Phase AC |
| Total Motor Power | 4.52 kW |
| Main Cutting Motor Power | 4 kW, 380V / 50Hz |
| Travel Motor Power | 0.4 kW |
| Clamping Motor Power | 0.12 kW |
| Spindle Speed | 1440 rpm |
| Beveling Feed Speed | 0.7–1.5 m/min, Variable Frequency Adjustable |
| Applicable Plate Thickness | 6–90 mm |
| Applicable Pipe Diameter | ≥ Ø850 mm |
| Applicable Pipe Height | >350 mm |
| Beveling Angle | 0°–90°, Adjustable |
| Cutter Diameter | 80 mm |
| Number of Blades | 6 pcs |
| Processing Method | Milling |
| Bevel Surface Roughness | Ra 3.2–6.3 |
| Max. Bevel Width per Pass | 0–15 mm |
| Machine Weight | 160 kg |
| Machine Dimensions | 1150 × 600 × 1100 mm |
| Travel Speed | 0.2–1.5 m/min |
Applicable Materials
- Carbon Steel
- Stainless Steel
- Alloy Steel
- Cast Iron
- Aluminum Plate
Applications
- Large-diameter pipe beveling
- Pipe end preparation
- Welding preparation
- Pipeline fabrication
- Heavy metal processing
- Industrial pipe manufacturing
