PW-H88
PRODUCT PARAMETERS
- Product Name: PW-H88
- Product Type: Automatic Welding Carriage
- Travel Speed: 0–900 mm/min
- Input Voltage: 220V / 50Hz
- Drive Motor: DC24V
- Welding Torch Adjustment: 50 mm Up/Down, 50 mm Left/Right
- Weaving Angle: ±15°
- Weaving Mode: Multiple Weaving Patterns
- Customization: Available according to application requirements
Description
FAQs
Request A Quote
Description

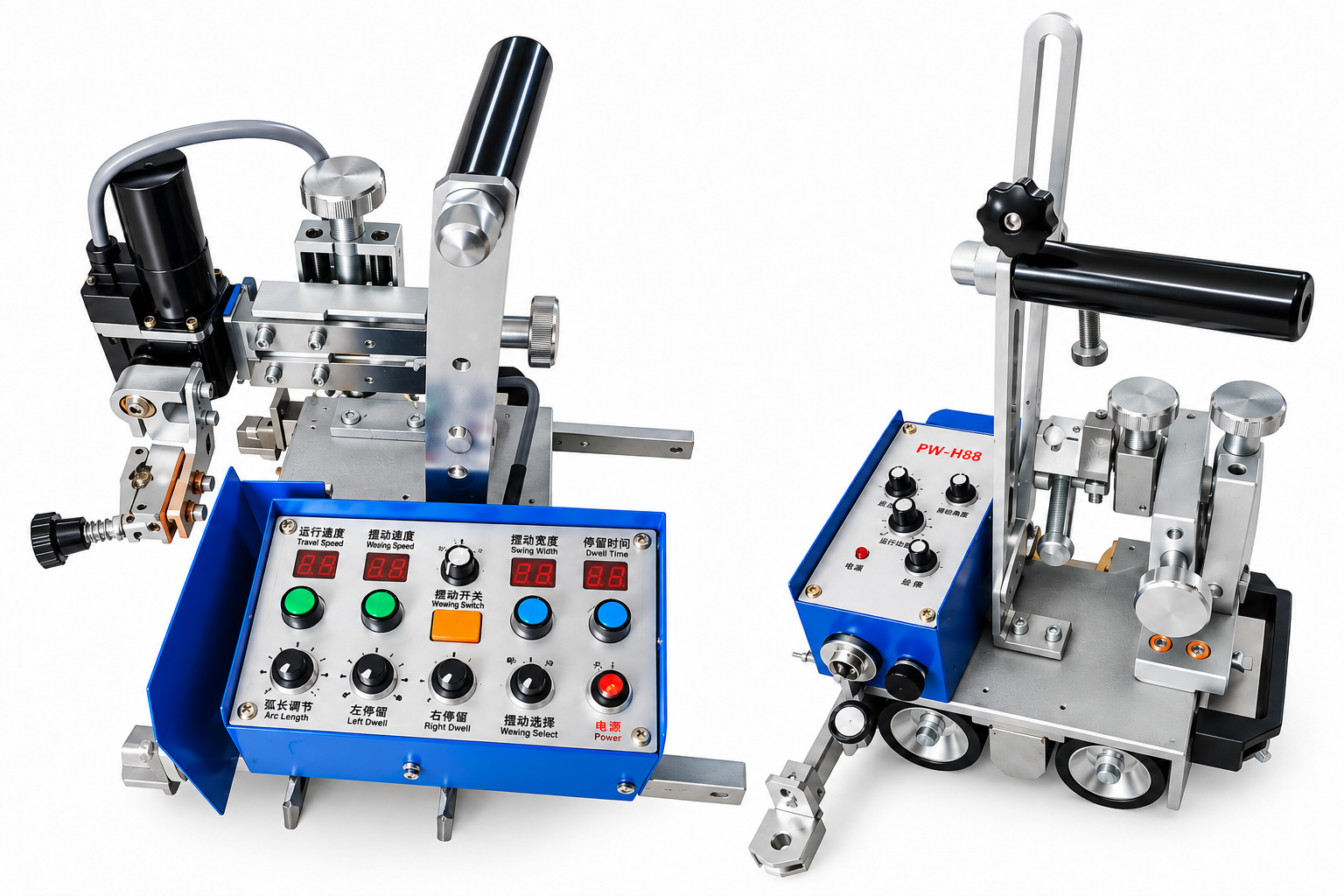

PW-H88
PW-H88 is a compact automatic welding carriage designed to provide stable travel and controlled welding torch movement for automated welding applications.
The system supports adjustable travel speed, welding torch positioning, dwell time and weaving parameters. Multiple weaving patterns are available to meet different welding process requirements.
With a compact structure and flexible torch adjustment, PW-H88 is suitable for large circular workpieces and other industrial automated welding applications.
Customization is available according to application requirements.
Product Features
- Adjustable Travel Speed: Travel speed can be adjusted from 0 to 900 mm/min.
- Flexible Torch Adjustment: Supports 50 mm up/down and 50 mm left/right welding torch adjustment.
- 360° Working Angle: Provides flexible welding torch positioning.
- Adjustable Dwell Time: Left/right dwell time can be set from 0 to 2.5 seconds.
- Weaving Control: Supports adjustable weaving width, speed and angle.
- Multiple Weaving Patterns: Supports different weaving modes for various welding processes.
- Customizable: Customization is available according to application requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PW-H88 |
| Input Voltage | 220V / 50Hz |
| Drive Motor | DC24V |
| Travel Speed | 0–900 mm/min |
| Overall Dimensions (L × W × H) | 435 × 280 × 330 mm |
| Weight | 10.2 kg |
| Welding Torch Adjustment – Up / Down | 50 mm |
| Welding Torch Adjustment – Left / Right | 50 mm |
| Welding Torch Working Angle | 360° |
| Welding Torch Traveling Angle | 10° |
| Left / Right Dwell Time | 0–2.5 s |
| Weaving Width Adjustment | 0–±8° |
| Weaving Speed | 0–100 |
| Weaving Angle | ±15° |
| Weaving Mode | Multiple Weaving Patterns |
| Minimum Applicable Diameter | ≥1000 mm |
| Minimum Required Width | ≥235 mm |
| Minimum Plate Height / Clearance | ≥12 mm |
Applications
- Automatic welding
- Circular workpiece welding
- Large-diameter workpiece welding
- Welding with oscillation / weaving
- Industrial fabrication
- Automated welding production
