Bat1600-S6
PRODUCT PARAMETERS
- Product Name: Bat1600-S6
- Robot Type: Parallel Robot
- Rated Payload: 6 kg
- Maximum Payload: 14 kg
- Working Range: 1600 mm
- Number of Axes: 4
- 4th-Axis Angular Repeatability: ±0.1°
- Rated Power: 6 kW
- Protection Rating: IP54
- Installation: Suspended / Ceiling-Mounted
Description
FAQs
Request A Quote
Description

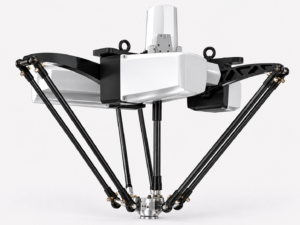

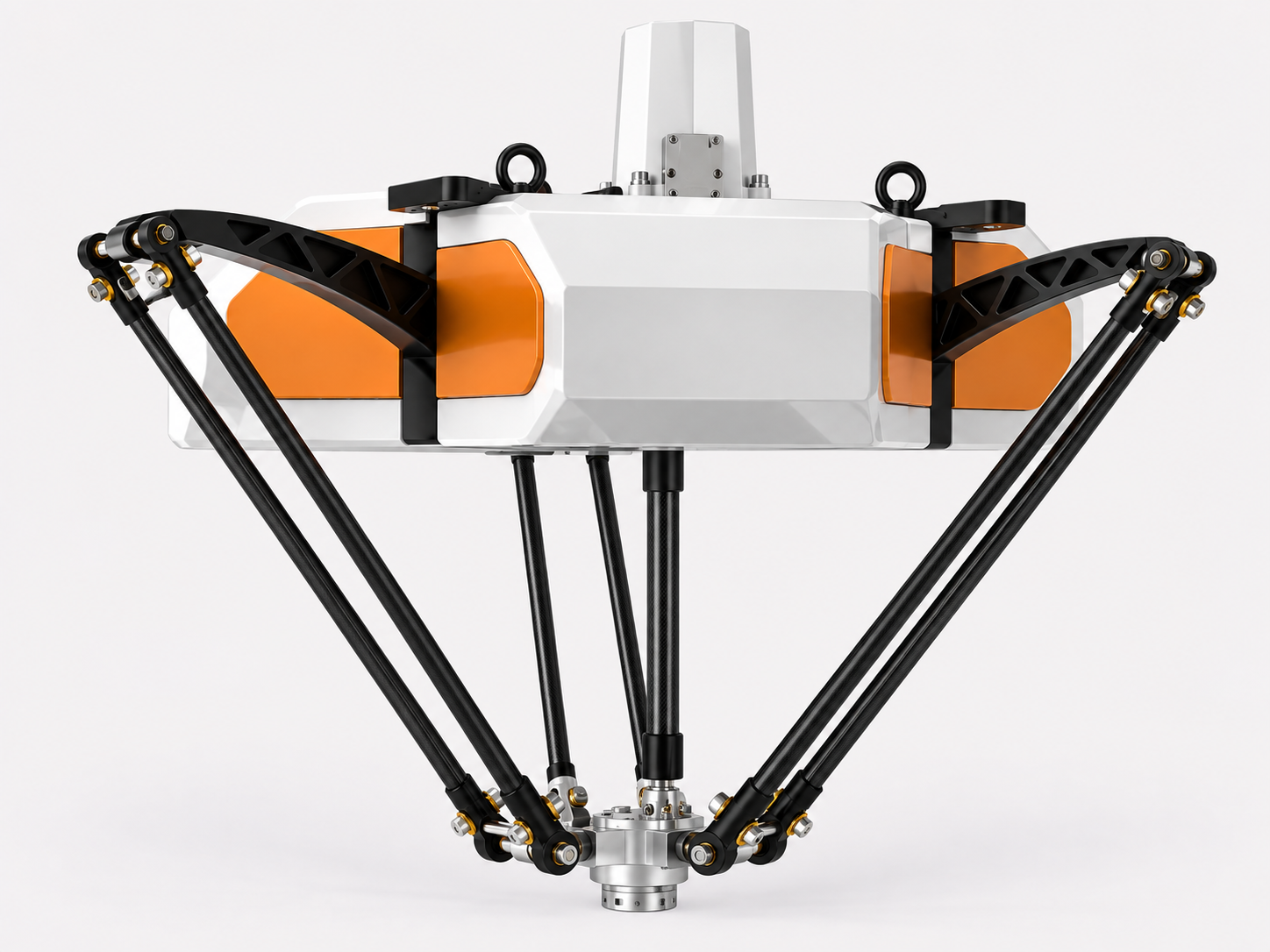

Bat1600-S6
Bat1600-S6 is a high-speed 4-axis parallel robot designed for automated picking, handling, sorting and material transfer applications.
With a large 1600 mm working range, strong load capacity and fast cycle performance, the robot is suitable for automated production environments requiring efficient, stable and repeatable operation.
Its suspended / ceiling-mounted configuration helps save floor space and enables flexible integration into automated production lines.
Product Features
- Large Working Range: 1600 mm working range for larger automated production areas.
- 4-Axis Design: Supports flexible high-speed automated motion.
- Strong Load Capacity: Rated payload of 6 kg with maximum payload up to 14 kg.
- High-Speed Operation: Fast cycle performance for efficient picking and handling.
- High Precision: 4th-axis angular repeatability reaches ±0.1°.
- Ceiling-Mounted Installation: Saves production floor space and simplifies line integration.
- Industrial Communication: Supports Ethernet, USB, RS232/RS485 and EtherCAT.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | Bat1600-S6 |
| Rated Payload | 6 kg |
| Maximum Payload | 14 kg |
| Working Range | 1600 mm |
| Number of Axes | 4 |
| 4th-Axis Angular Repeatability | ±0.1° |
| 25/305/25 Cycle Time – 0.1 kg | 0.25 s |
| 25/305/25 Cycle Time – 1 kg | 0.26 s |
| 25/305/25 Cycle Time – 3 kg | 0.28 s |
| 25/305/25 Cycle Time – 6 kg | 0.32 s |
| 90/400/90 Cycle Time – 0.1 kg | 0.36 s |
| 90/400/90 Cycle Time – 1 kg | 0.36 s |
| 90/400/90 Cycle Time – 3 kg | 0.38 s |
| 90/400/90 Cycle Time – 6 kg | 0.41 s |
| Power Supply | 3-Phase AC 380 V ±10%, 50/60 Hz |
| Rated Power | 6 kW |
| Ambient Temperature | 0–45°C |
| Relative Humidity | 5–95% |
| Protection Rating | IP54 |
| Safety | Monitoring, Emergency Stop and Safety Functions |
| EMC Protection | EMC Shielding |
| Mounting Method | Suspended / Ceiling-Mounted |
| Robot Body Weight | 100 kg |
| Ethernet | 2 Ports |
| USB | 2 Ports |
| RS232 / RS485 | 1 Port |
| EtherCAT | 1 Port |
| Communication Protocol | Modbus-RTU/TCP, Socket |
| Certification | CE, CR Certification |
Applications
- High-speed picking
- Material handling
- Loading and unloading
- Product sorting
- Packaging automation
- Automated production lines
- Industrial automation
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
