Shandong Jisi Intelligent Equipment Co., Ltd.
Bat1300M-S15
PRODUCT PARAMETERS
- Product Name: Bat1300M-S15
- Robot Type: Parallel Robot
- Rated Payload: 15 kg
- Maximum Payload: 30 kg
- Working Diameter: 1300 mm
- Number of Axes: 4
- Repeat Positioning Accuracy: ±0.1 mm
- 4th-Axis Angular Repeatability: ±0.05°
- Rated Power: 6.6 kW
- Protection Rating: IP54
- Installation: Ceiling-Mounted
Description
FAQs
Request A Quote
Description

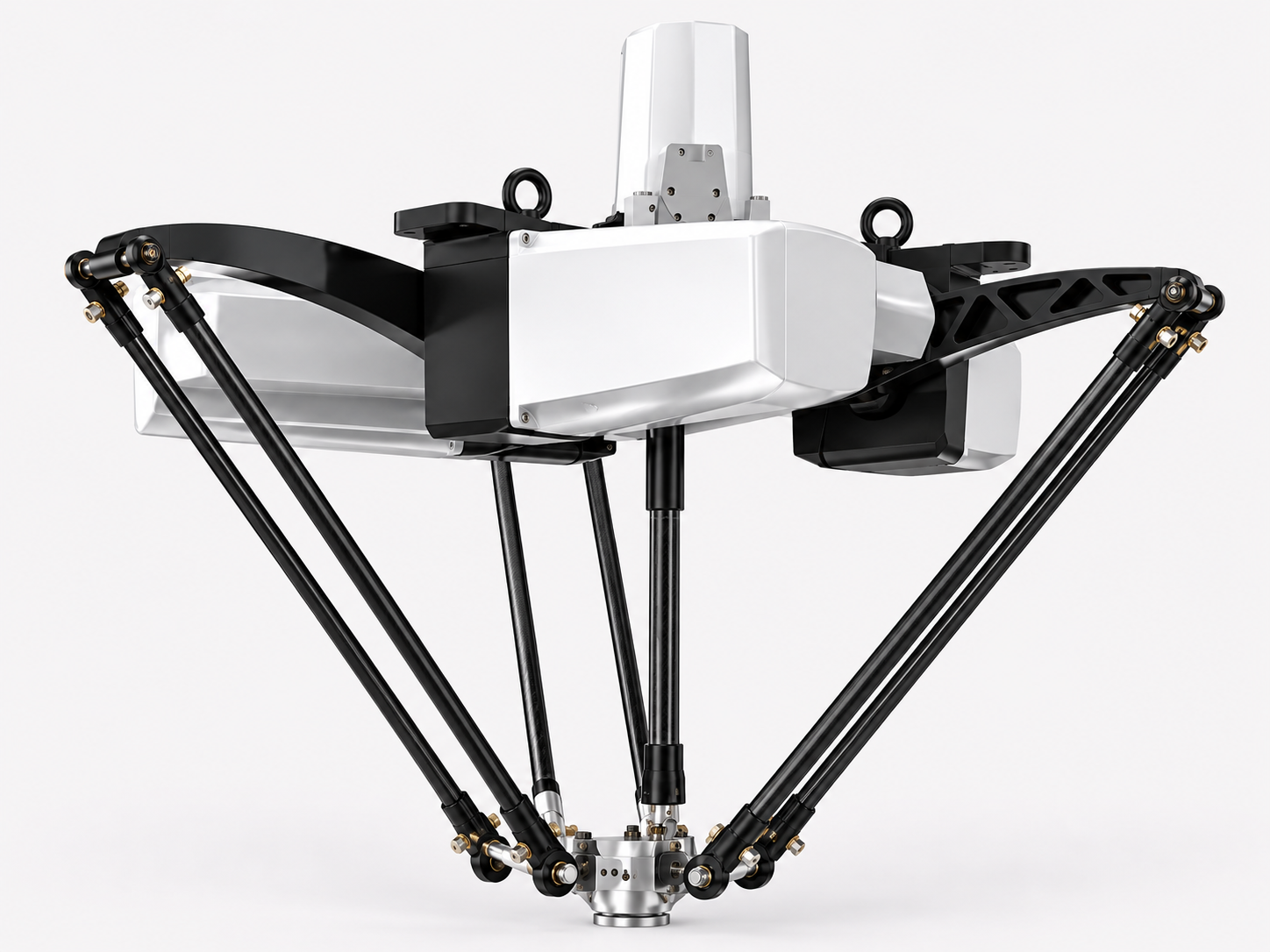

Bat1300M-S15
Bat1300M-S15 is a high-performance 4-axis parallel robot designed for high-speed, high-precision automated production applications. It combines fast motion, high positioning accuracy and strong load capacity for flexible industrial automation.
The robot provides a 1300 mm working diameter, a rated payload of 15 kg and a maximum payload of up to 30 kg. Its 4th-axis angular repeatability reaches ±0.05°, supporting precise and repeatable positioning in demanding production environments.
Bat1300M-S15 is suitable for automated picking, material handling, loading and unloading, transfer, sorting and other high-speed production applications in electronics, food, pharmaceutical, daily chemical, logistics, new energy and related industries.
Product Features
- High-Speed Operation: Designed for fast picking, handling and transfer operations.
- High Load Capacity: 15 kg rated payload with up to 30 kg maximum payload.
- Large Working Range: 1300 mm working diameter for larger automated production areas.
- High Precision: 4th-axis angular repeatability reaches ±0.05°.
- 4-Axis Design: Supports flexible automated motion and orientation.
- Ceiling-Mounted Structure: Helps save floor space and simplifies production line integration.
- Industrial Communication: Supports Ethernet, USB, RS232/RS485 and EtherCAT.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | Bat1300M-S15 |
| Rated Payload | 15 kg |
| Maximum Payload | 30 kg |
| Working Diameter | 1300 mm |
| Number of Axes | 4 |
| 4th-Axis Angular Repeatability | ±0.05° |
| Repeat Positioning Accuracy | ±0.1 mm |
| 25/305/25 Cycle Time – 3 kg | 0.38 s |
| 25/305/25 Cycle Time – 6 kg | 0.42 s |
| 90/400/90 Cycle Time – 3 kg | 0.45 s |
| 90/400/90 Cycle Time – 6 kg | 0.50 s |
| 90/400/90 Cycle Time – 15 kg | 0.61 s |
| Power Supply | 3-Phase AC 380 V ±10%, 50/60 Hz |
| Rated Power | 6.6 kW |
| Ambient Temperature | 0–45°C |
| Relative Humidity | 5–95% |
| Protection Rating | IP54 |
| Safety | Monitoring, Emergency Stop and Safety Functions |
| EMC Protection | EMC Shielding |
| Installation | Ceiling-Mounted |
| Robot Body Weight | 125 kg |
| Ethernet | 2 Ports |
| USB | 2 Ports |
| RS232 / RS485 | 1 Port |
| EtherCAT | 1 Port |
| Communication Protocol | Modbus-RTU/TCP, Socket |
Applications
- High-speed picking
- Material handling
- Loading and unloading
- Sorting and transfer
- Packaging automation
- Electronics production
- Food production
- Pharmaceutical production
- Logistics automation
- New energy production
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
