PW-H91
PRODUCT PARAMETERS
- Product Name: PW-H91
- Product Type: Pipeline Welding Carriage
- Applicable Pipe Diameter: ≥ Φ150 mm
- Applicable Wall Thickness: ≥ 5 mm
- Machine Weight: 17 kg
- Power Supply: AC 220 V or DC 24 V, 50/60 Hz
- Applicable Materials: Carbon Steel, Stainless Steel, Alloy Steel, Low-Temperature Steel
- Weaving Angle: 0–±8°
- Welding Mode: Magnetic Trackless / Rail-Mounted
- Customization: Rail specifications can be customized according to welding requirements
Description
FAQs
Request A Quote
Description

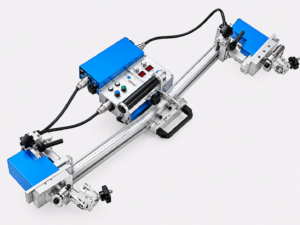

PW-H91

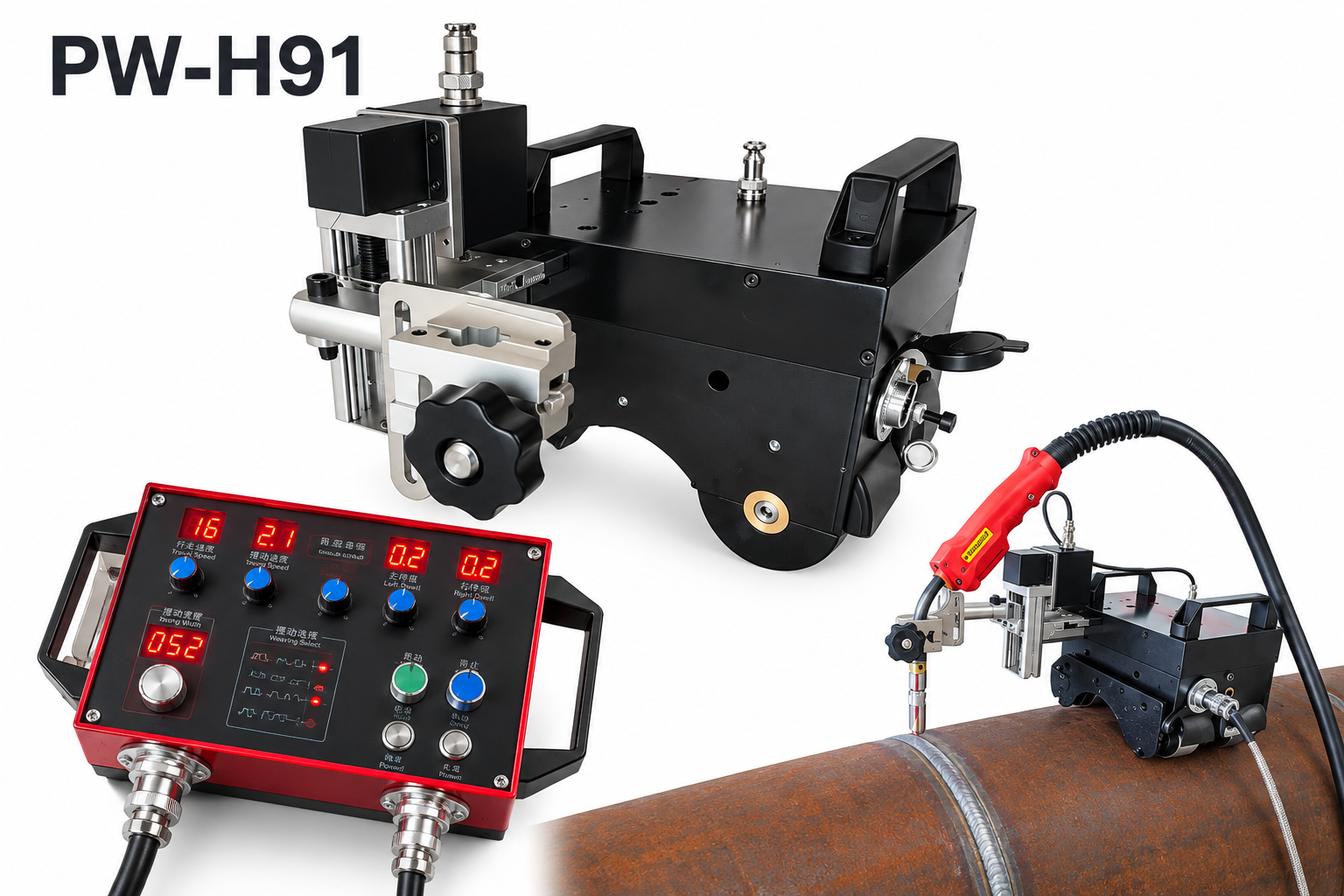

PW-H91 is an automatic pipeline welding carriage designed for all-position welding of pipelines. It is widely used in petroleum, petrochemical, chemical, heating, natural gas, offshore engineering and municipal pipeline applications.
The system is available in both trackless magnetic and rail-mounted configurations. The trackless version uses magnetic adsorption to attach directly to the pipeline and automatically travels along the weld seam. Installation, operation and removal can be completed quickly and conveniently.
The rail-mounted version is mainly suitable for stainless steel pipelines or other pipes that cannot be magnetically adsorbed. Rail specifications can be customized according to welding requirements.
During operation, the workpiece remains fixed while the welding carriage moves along the pipeline to achieve all-position automatic welding. Welding parameters can be preset and fine-tuned through a wired handheld controller.
Product Features
- Automatic Pipeline Welding: Enables automatic all-position welding around the pipeline.
- Magnetic Trackless Operation: The trackless version attaches directly to the pipe using magnetic force.
- Rail-Mounted Option: Suitable for stainless steel and other non-magnetic pipelines.
- Adjustable Welding Parameters: Welding settings can be preset and fine-tuned through a wired controller.
- Multiple Weaving Modes: Supports adjustable weaving angle, speed and dwell time.
- Wide Material Compatibility: Suitable for carbon steel, stainless steel, alloy steel and low-temperature steel.
- Customizable Rail: Rail specifications can be customized according to welding requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PW-H91 |
| Product Type | Pipeline Welding Carriage |
| Applicable Pipe Diameter | ≥ Φ150 mm |
| Applicable Wall Thickness | ≥ 5 mm |
| Machine Weight | 17 kg |
| Power Supply | AC 220 V or DC 24 V, 50/60 Hz |
| Overall Dimensions | 330 × 350 × 220 mm |
| Applicable Materials | Carbon Steel, Stainless Steel, Alloy Steel, Low-Temperature Steel, etc. |
| Applicable Weld Forms | Pipe-to-Pipe Welds, Pipe Elbow Welds, Pipe Flange Welds and Other Pipe Section Welds |
| Welding Torch Adjustment Range | Approx. 150 mm |
| Welding Torch Adjustment Height | 60 mm |
| Operation Angle | 180° |
| Adjustment Angle | ±45° |
| Weaving Angle | 0–±8° |
| Maximum Weaving Speed | 0–40 cycles/min |
| Left / Right Dwell Time | 0–2.5 s |
| Weaving Mode | Multiple Weaving Patterns |
Applications
- Long-distance pipeline welding
- Petroleum and petrochemical pipelines
- Natural gas pipelines
- Heating pipelines
- Buried pipelines
- Process piping
- Offshore engineering pipelines
- Municipal water and heating pipelines
