Robotic Laser Welding System
PRODUCT PARAMETERS
- Product Name: Robotic Laser Welding System
- Robot Type: 6-Axis Industrial Robot
- Laser Power: 1000 W / 1500 W / 2000 W / 3000 W
- Robot Payload: 6 kg / 10 kg / 20 kg
- Robot Reach: 1400 mm / 1650 mm / 2000 mm
- Positioner: 1-Axis / 2-Axis Servo Rotary Positioner
- Positioner Capacity: 200 kg / 500 kg / 1000 kg
- Positioner Diameter: 500 mm / 800 mm / 1000 mm
- Wire Feeding: Optional Single / Dual Wire Feeder
- Customization: OEM / ODM Available
Description
FAQs
Request A Quote
Description
Robotic Laser Welding System

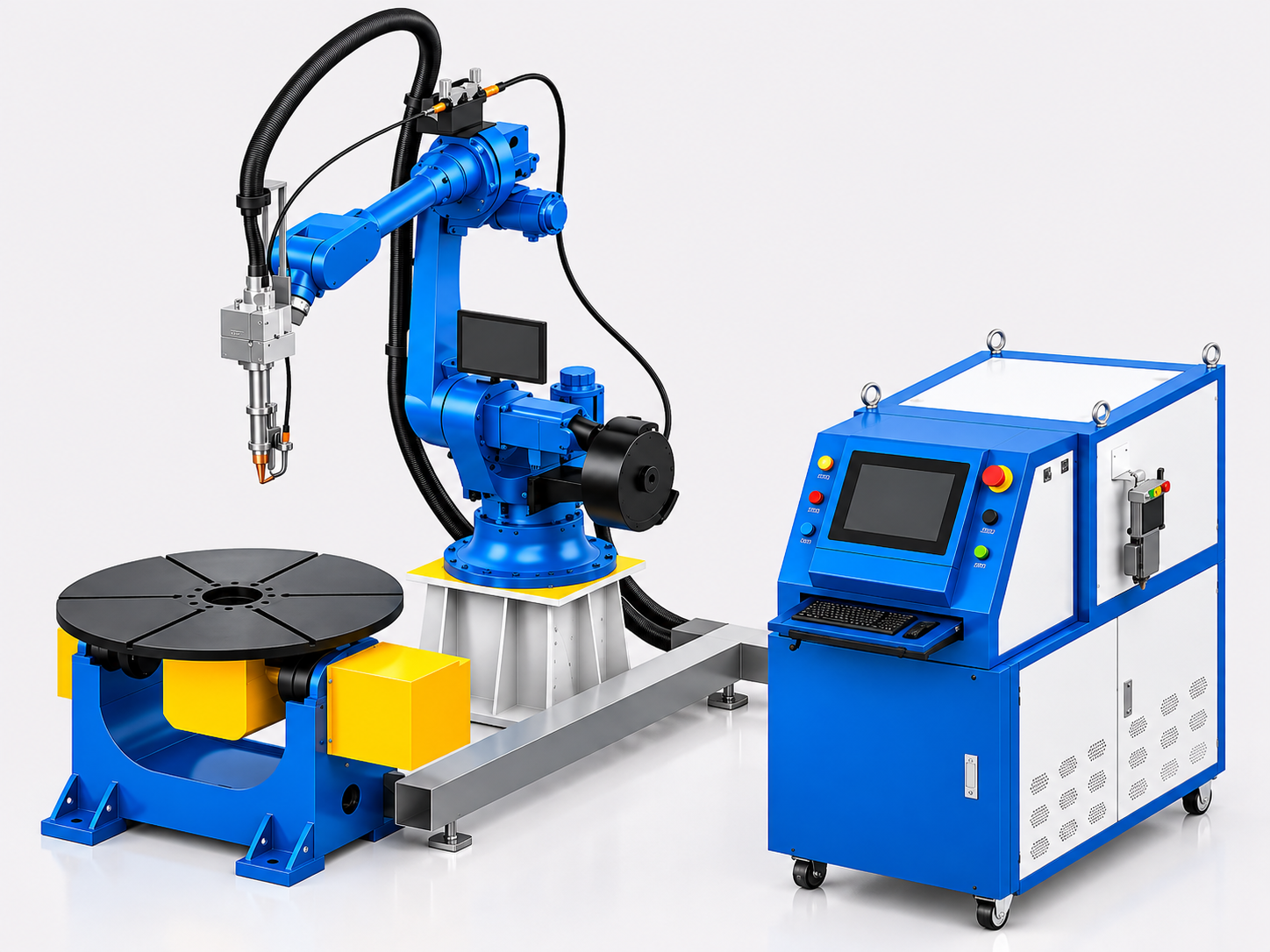

Robotic Laser Welding System is an automated welding solution integrating a 6-axis industrial robot, fiber laser source, robotic laser welding head, servo rotary positioner and integrated robot & laser control system.
The system provides flexible robotic motion combined with rotary workpiece positioning, making it suitable for complex and multi-angle laser welding applications.
Laser power, robot payload, robot reach and positioner configuration can be selected according to different workpieces and production requirements.
Optional single or dual wire feeding systems are available, and OEM / ODM customization is supported.
Product Features
- 6-Axis Industrial Robot: Provides flexible motion for complex automated welding tasks.
- Fiber Laser Welding: Supports 1000 W, 1500 W, 2000 W and 3000 W laser power options.
- Servo Rotary Positioner: Supports 1-axis or 2-axis configurations for flexible workpiece positioning.
- Multiple Robot Configurations: Robot payload and working reach can be selected according to application requirements.
- Optional Wire Feeding: Single or dual wire feeding systems are available.
- Continuous / Pulse Welding: Supports different laser welding process requirements.
- Industrial Water Cooling: Equipped with an industrial water chiller.
- Flexible Automation: Suitable for sheet metal, automotive parts, machinery and metal fabrication.
- Customizable: OEM / ODM configuration is available according to production requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Robotic Laser Welding System |
| Robot Type | 6-Axis Industrial Robot |
| Welding Process | Laser Welding |
| Laser Source | Fiber Laser |
| Laser Power | 1000 W / 1500 W / 2000 W / 3000 W (Optional) |
| Welding Head | Robotic Laser Welding Head |
| Robot Payload | 6 kg / 10 kg / 20 kg |
| Robot Reach | 1400 mm / 1650 mm / 2000 mm |
| Positioning System | Servo Positioner (Rotary Table) |
| Positioner Type | 1-Axis / 2-Axis Optional |
| Positioner Load Capacity | 200 kg / 500 kg / 1000 kg (Optional) |
| Positioner Diameter | 500 mm / 800 mm / 1000 mm (Optional) |
| Control System | Integrated Robot & Laser Control System |
| Cooling System | Industrial Water Chiller |
| Wire Feeding System | Optional Single / Dual Wire Feeder |
| Shielding Gas | Argon / Nitrogen |
| Welding Mode | Continuous / Pulse |
| Power Supply | 3-Phase AC 380 V ±10%, 50/60 Hz |
| Customization | OEM / ODM Available |
Applicable Materials
- Carbon Steel
- Stainless Steel
- Aluminum Alloy
- Galvanized Steel
Applications
- Sheet metal welding
- Automotive parts welding
- Metal fabrication
- Machinery manufacturing
- Automated robotic laser welding
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
