3D Laser Cutting Robot

PRODUCT PARAMETERS

  • Product Name: 3D Laser Cutting Robot
  • Models: CHLC1500 / CHLC2000
  • Repeatability: ±0.05 mm / ±0.08 mm
  • Laser Wavelength: 1080 ± 10 nm
  • Laser Power: 1500 W / 2000 W / 3000 W / 6000 W
  • Auxiliary Air Pressure: ≤3 MPa
  • External Axis: Supported
  • Applications: Complex Surfaces / Irregular Workpieces / Large Components
Description
FAQs
Request A Quote

Description

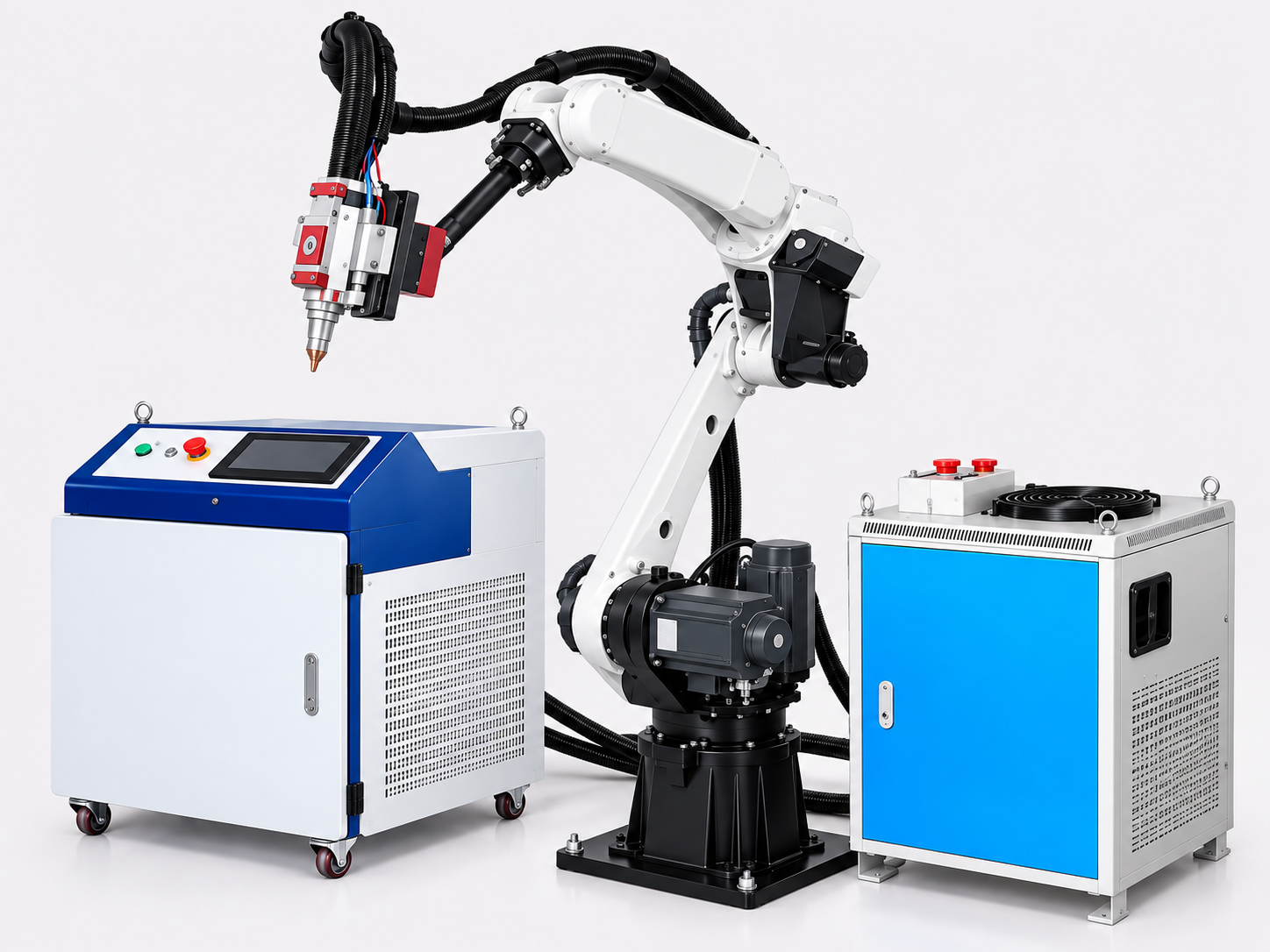

3D Laser Cutting Robot

The 3D Laser Cutting Robot is designed for automated laser cutting of complex surfaces, irregular workpieces and large components.

Two models are available: CHLC1500 and CHLC2000. Different laser power configurations allow the system to meet various industrial laser cutting requirements.

Both models support external-axis integration, making them suitable for flexible automated processing of complex and large-size workpieces.

Product Features

  • 3D Laser Cutting: Designed for complex surfaces and irregular workpieces.
  • High Positioning Accuracy: Repeatability reaches ±0.05 mm for CHLC1500 and ±0.08 mm for CHLC2000.
  • Multiple Laser Power Options: Different power configurations are available for different cutting requirements.
  • External Axis Supported: Supports integration with external axes for expanded processing capability.
  • Large Component Processing: Suitable for complex surfaces, irregular workpieces and large components.

Product Specifications

ParameterCHLC1500CHLC2000
Product Type3D Laser Cutting Robot3D Laser Cutting Robot
Robot ModelCHLC1500CHLC2000
Repeatability±0.05 mm±0.08 mm
Laser Wavelength1080 ± 10 nm1080 ± 10 nm
Laser Power1500 W / 2000 W3000 W / 6000 W
Auxiliary Air Pressure≤3 MPa≤3 MPa
External AxisSupportedSupported
End FlangeSolidSolid
Robot Body WeightApprox. 116 kgApprox. 198 kg
J4 Allowable Moment of Inertia0.65 kg·m²0.65 kg·m²
J5 Allowable Moment of Inertia0.65 kg·m²0.65 kg·m²
J6 Allowable Moment of Inertia0.17 kg·m²0.17 kg·m²

Applications

  • Complex surface laser cutting
  • Irregular workpiece processing
  • Large component cutting
  • 3D metal cutting
  • Automated laser processing

FAQs

Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.

Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.

Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.

Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.

The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.

Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.

Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.

They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.

Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.

Our goal is to help customers achieve stable operation and efficient automation production.
