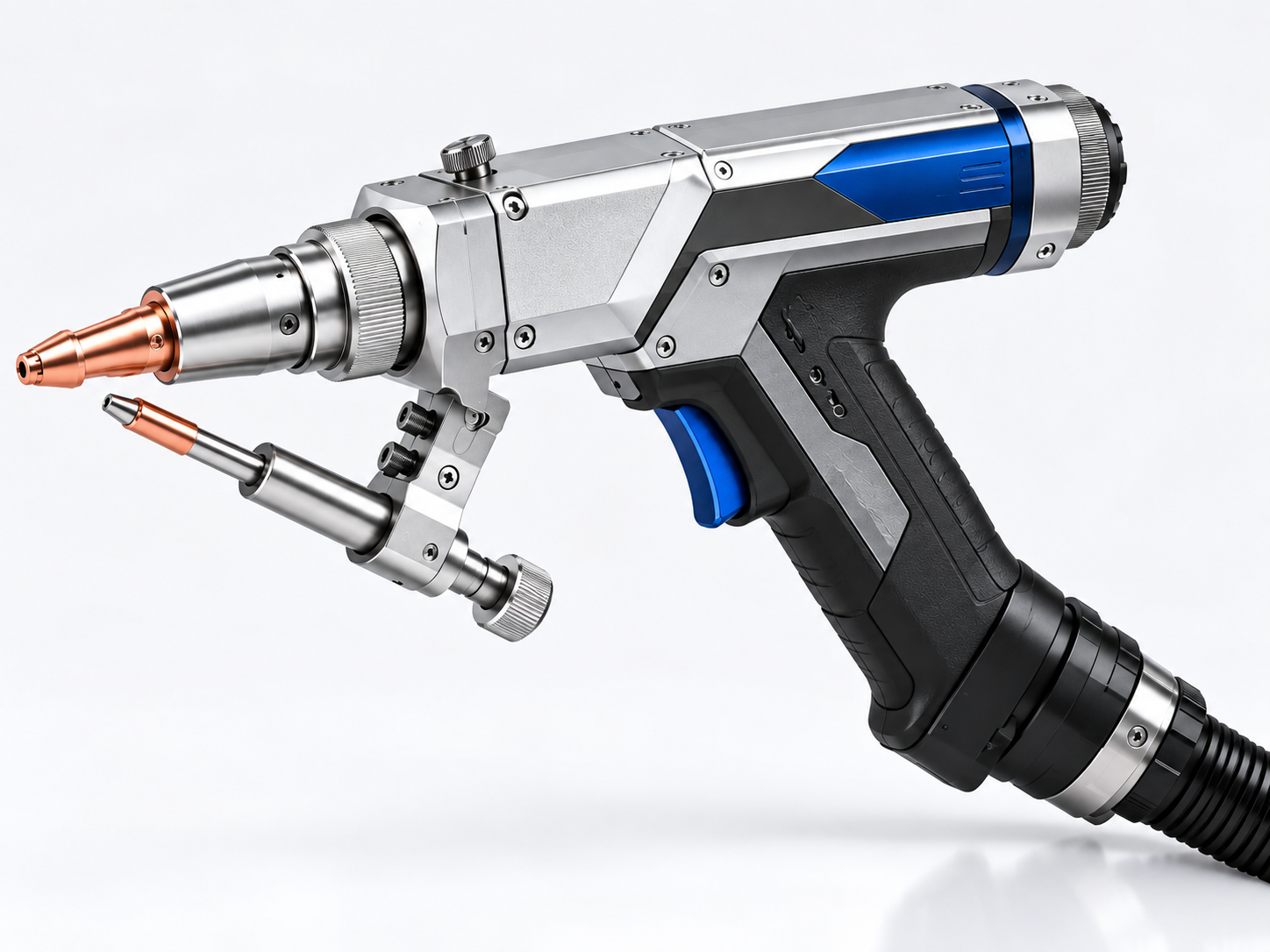

Handheld Laser Welding Head

PRODUCT PARAMETERS

  • Product Name: Handheld Laser Welding Head
  • Laser Type: Continuous Fiber Laser
  • Laser Power: 1500W / 2000W / 3000W
  • Optical Interface: QBH
  • Welding Mode: Wobble Welding
  • Wobble Width: 0.2–5.0 mm
  • Cooling Method: Water Cooling
  • Positioning: Red Light Positioning
  • Wire Diameter: 0.8 / 1.0 / 1.2 / 1.6 mm
  • Customization: Available according to application requirements
Description
FAQs
Request A Quote

Description

Handheld Laser Welding Head

Handheld Laser Welding Head is designed for continuous fiber laser welding applications and is compatible with 1500W, 2000W and 3000W laser systems.

The welding head adopts wobble welding technology with adjustable wobble width from 0.2 to 5.0 mm, providing flexible welding performance for different joint types and workpieces.

It supports red light positioning, water cooling and Argon / Nitrogen shielding gas. Different focusing focal lengths and wire diameters are available according to welding requirements.

Customization is available according to laser system and application requirements.

Product Features

  • Continuous Fiber Laser: Designed for fiber laser welding systems.
  • Multiple Laser Power Options: Compatible with 1500W, 2000W and 3000W laser power.
  • Wobble Welding: Supports adjustable wobble welding for flexible seam control.
  • Adjustable Wobble Width: 0.2–5.0 mm adjustment range.
  • Red Light Positioning: Helps improve welding positioning and operation.
  • Water Cooling: Designed for stable continuous welding operation.
  • Wire Feeding Compatibility: Supports multiple wire diameters.
  • Wide Material Compatibility: Suitable for carbon steel, stainless steel, aluminum and galvanized steel.
  • Customizable: Configuration can be adjusted according to application requirements.

Product Specifications

ParameterSpecification
Product NameHandheld Laser Welding Head
Laser TypeContinuous Fiber Laser
Applicable Laser Power1500W / 2000W / 3000W
Optical InterfaceQBH
Laser Wavelength1064–1080 nm
Welding ModeWobble Welding
Adjustable Wobble Width0.2–5.0 mm
Collimating Focal Length50 mm
Focusing Focal Length120 / 150 mm
Protective LensD20 × 2 mm
Cooling MethodWater Cooling
Positioning MethodRed Light Positioning
Shielding GasArgon / Nitrogen
Compatible Wire Diameter0.8 / 1.0 / 1.2 / 1.6 mm

Applicable Materials

  • Carbon Steel
  • Stainless Steel
  • Aluminum
  • Galvanized Steel

Applications

  • Butt welding
  • Lap welding
  • Fillet welding
  • Spot welding
