Dual-Axis Horizontal Rotation Frame Positioner

PRODUCT PARAMETERS

  • Product Name: Dual-Axis Horizontal Rotation Frame Positioner
  • Models: ZB-SHX4-500 / ZB-SHX4-1000 / ZB-SHX4-2000
  • Payload: 500 / 1000 / 2000 kg
  • Rotation Radius: 400 / 500 / 600 mm
  • Rotation Angle: 1st Axis ±175° / 2nd Axis ±360°
  • Application: Robotic welding and automated welding systems
  • Customization: Technical parameters can be customized according to customer requirements
Description
FAQs
Request A Quote

Description

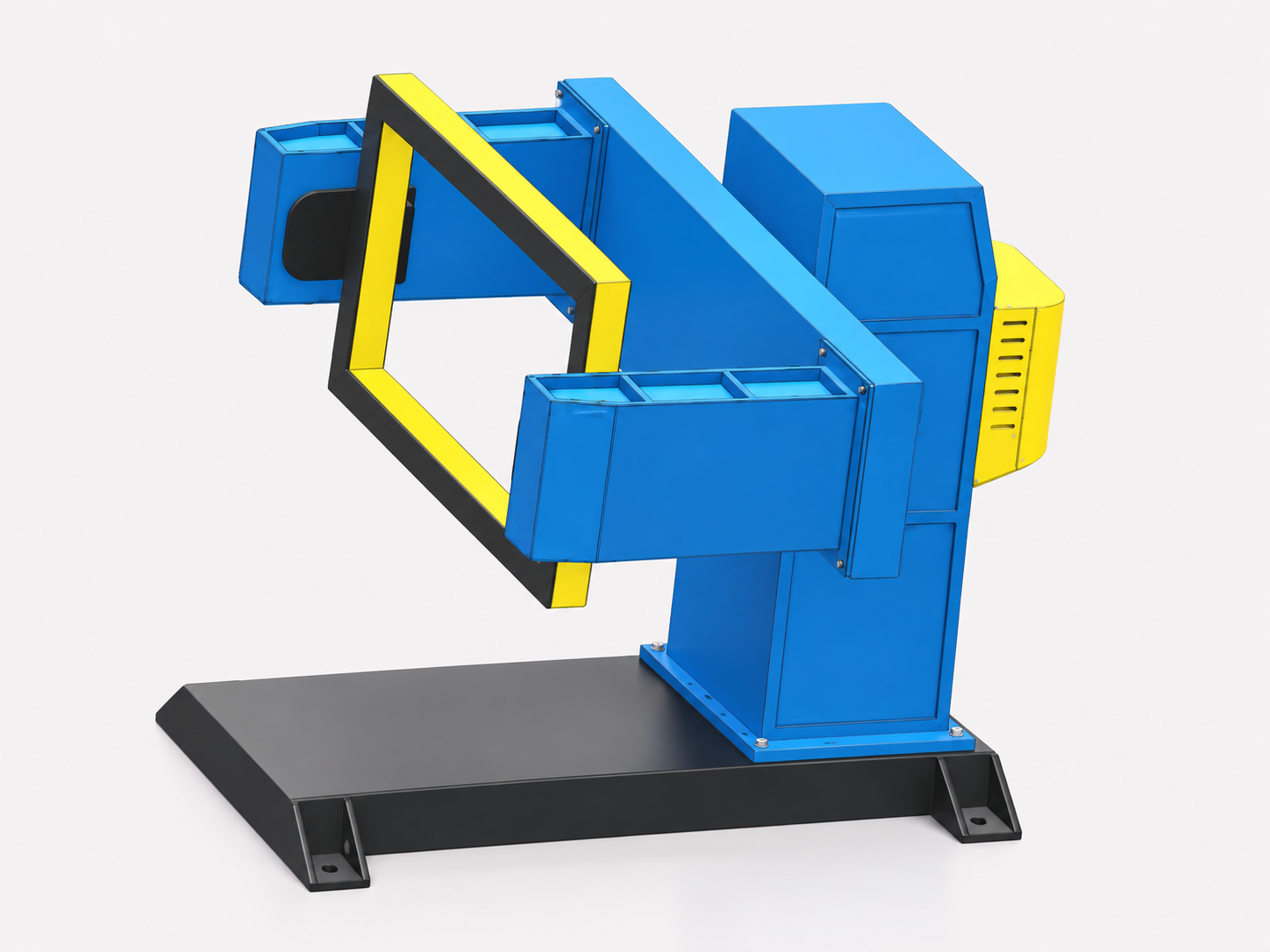

Dual-Axis Horizontal Rotation Frame Positioner

The Dual-Axis Horizontal Rotation Frame Positioner is designed to provide flexible workpiece positioning for robotic welding and automated welding applications. Its dual-axis structure allows the workpiece to be rotated and repositioned to different welding angles, supporting more convenient and efficient welding operations.

The series is available in multiple load configurations from 500 kg to 2000 kg. Different models provide different rotation radii and rotation speeds to meet various workpiece and production requirements.

Technical parameters can be customized according to customer requirements.

Product Features

  • Dual-Axis Rotation: Provides flexible workpiece rotation and positioning.
  • Multiple Load Options: Available in 500 kg, 1000 kg and 2000 kg configurations.
  • Flexible Positioning: Supports adjustment of workpieces to suitable welding positions.
  • Wide Rotation Range: First axis up to ±175° and second axis up to ±360°.
  • Customizable: Technical parameters can be customized according to customer requirements.

Product Specifications

ModelPayloadRotation RadiusRotation SpeedRepeat Positioning AccuracyRotation Angle
ZB-SHX4-500500 kg400 mm1st Axis: 50°/s
2nd Axis: 70°/s		>0.1–0.15 mm1st Axis: ±175°
2nd Axis: ±360°
ZB-SHX4-10001000 kg500 mm1st Axis: 50°/s
2nd Axis: 70°/s		>0.1–0.15 mm1st Axis: ±175°
2nd Axis: ±360°
ZB-SHX4-20002000 kg600 mm1st Axis: 17°/s
2nd Axis: 17°/s		>0.1–0.15 mm1st Axis: ±175°
2nd Axis: ±360°

Applications

  • Robotic welding systems
  • Automated welding workstations
  • Workpiece rotation and positioning
  • Multi-angle welding operations
