TCK6050Y / TCK70Y

PRODUCT PARAMETERS

  • Product Name: TCK6050Y / TCK70Y CNC Turning and Milling Center
  • Models: TCK6050Y-500 / TCK6050Y-1000 / TCK70Y-1500 / TCK70Y-2000 / TCK70Y-3000
  • Chuck Size: 8 / 10 / 12 / 15 inch
  • Max. Swing Diameter: 560 / 720 mm
  • Max. Turning Diameter: 410 / 480 mm
  • Max. Turning Length: 500–2950 mm
  • Y-Axis Travel: ±50 / ±75 mm
  • Live Tool Turret: BMT55 / BMT65
  • Spindle Speed: Up to 4000 rpm
  • Customization: Available according to application requirements
Description
FAQs
Request A Quote

Description

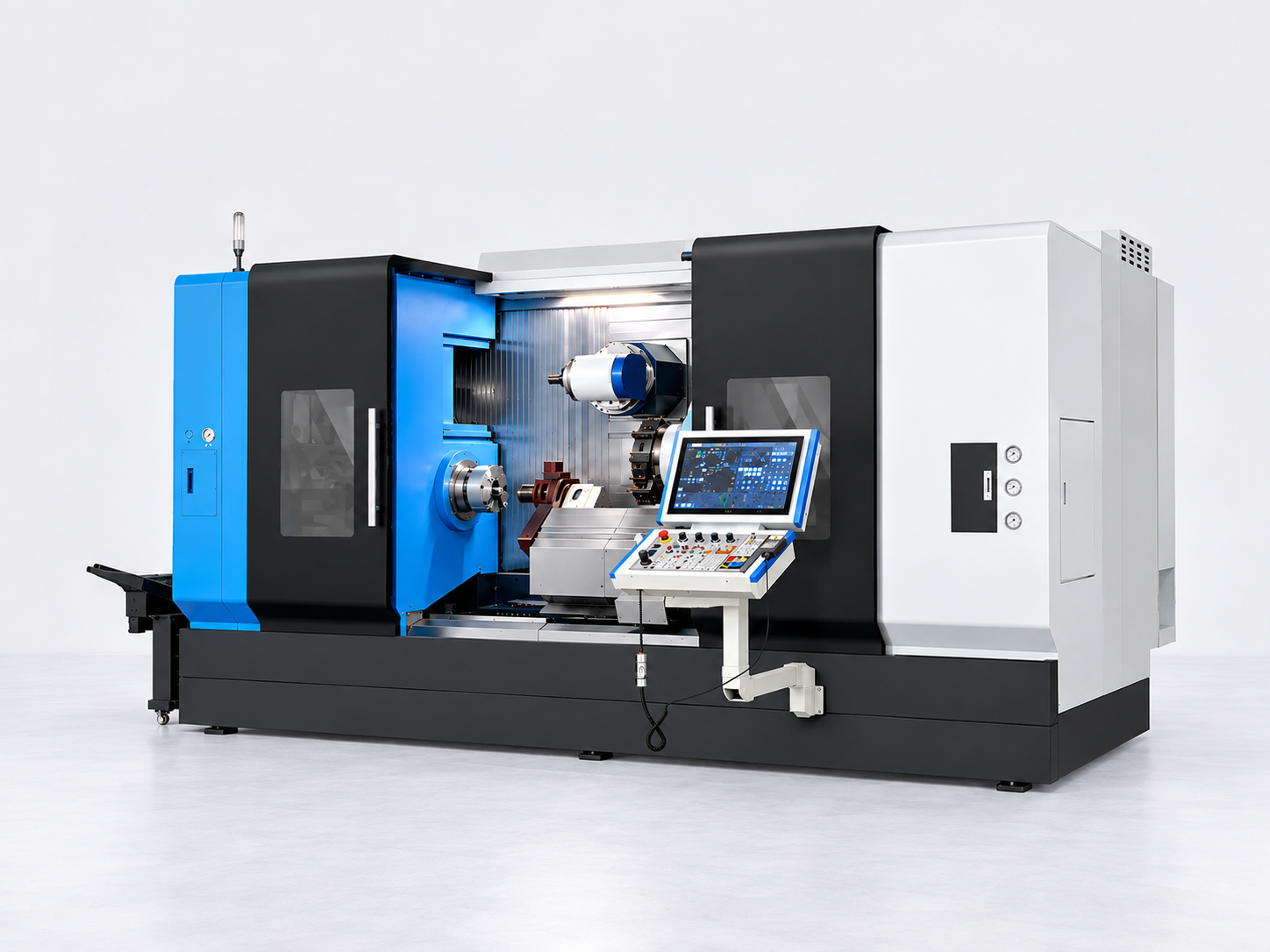

TCK6050Y / TCK70Y CNC Turning and Milling Center

The TCK6050Y / TCK70Y series is designed for integrated turning and milling applications with precise Y-axis control.

The series combines CNC turning with live-tool milling capability, helping reduce repeated workpiece clamping and improve machining efficiency for complex components.

Multiple machine sizes are available, with maximum turning lengths ranging from 500 mm to 2950 mm and Y-axis travel of ±50 mm or ±75 mm depending on model.

Product Features

  • Turning & Milling Integration: Supports combined turning and live-tool milling operations.
  • Y-Axis Control: Provides precise Y-axis movement for complex machining applications.
  • Multiple Chuck Sizes: Available with 8 / 10 / 12 / 15 inch chuck configurations depending on model.
  • Large Turning Capacity: Maximum swing diameter up to 720 mm.
  • Long Turning Length: Available from 500 mm up to 2950 mm.
  • Live Tool Turret: BMT55 or BMT65 depending on machine model.
  • High Spindle Speed: Up to 4000 rpm on TCK6050Y models.

Product Specifications

ModelChuckMax. Swing DiameterMax. Turning DiameterMax. Turning LengthY-Axis TravelLive Tool TurretSpindle Speed
TCK6050Y-5008 / 10 inch560 mm410 mm500 mm±50 mmBMT5550–4000 rpm
TCK6050Y-10008 / 10 inch560 mm410 mm980 mm±50 mmBMT5550–4000 rpm
TCK70Y-150010 / 12 inch720 mm480 mm1500 mm±75 mmBMT653000 rpm
TCK70Y-200010 / 12 / 15 inch720 mm480 mm1950 mm±75 mmBMT653000 rpm
TCK70Y-300010 / 12 / 15 inch720 mm480 mm2950 mm±75 mmBMT651500 rpm

Applications

  • CNC turning
  • Live-tool milling
  • Complex shaft machining
  • Multi-process component machining
  • Industrial precision machining
