HMC630-DT / HMC800-DT / HMC1000-DT

PRODUCT PARAMETERS

  • Product Name: HMC630-DT / HMC800-DT / HMC1000-DT High-Speed Horizontal Machining Center
  • Models: HMC630-DT / HMC800-DT / HMC1000-DT
  • Work Table: 630×630 / 800×800 / 1000×1000 mm
  • X/Y/Z Travel: Up to 2000 / 1350 / 1300 mm
  • Spindle Speed: 6000 rpm
  • Spindle Power (FANUC): 15 kW
  • Spindle Power (KND): 22 kW
  • Tool Magazine: 24 Tools
  • Structure: T-Type
  • Optional Configuration: Gearbox
  • Customization: Available according to application requirements
Description
FAQs
Request A Quote

Description

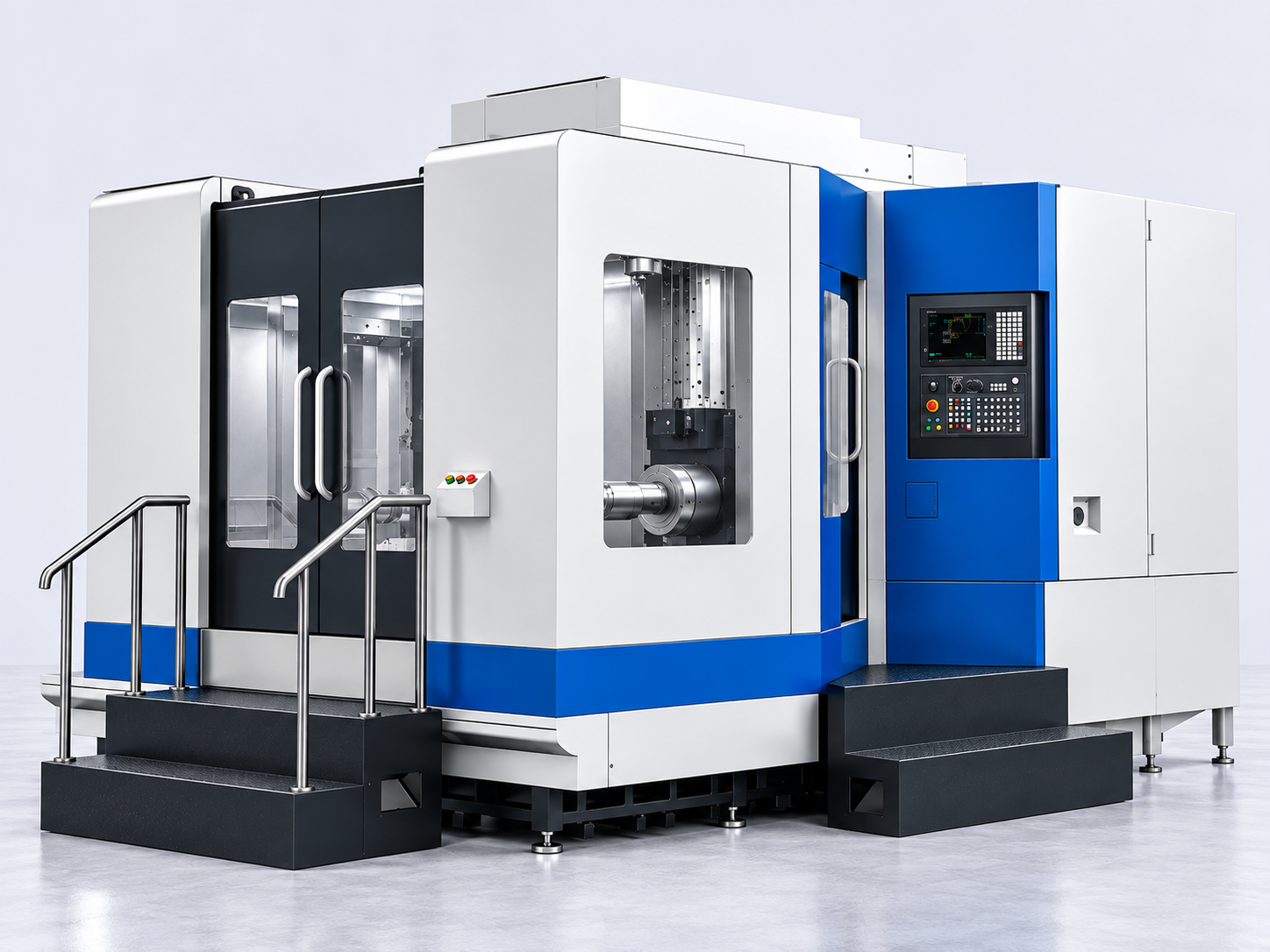

HMC630-DT / HMC800-DT / HMC1000-DT High-Speed Horizontal Machining Center

The HMC630-DT / HMC800-DT / HMC1000-DT series is a high-speed, high-efficiency horizontal machining center with a T-type structure.

The series offers multiple worktable sizes and machining travel configurations to meet different workpiece machining requirements.

All three models feature a spindle speed of 6000 rpm and a 24-tool magazine. FANUC spindle power is 15 kW, while KND spindle power is 22 kW.

An optional gearbox configuration is available according to the provided product specification.

Product Features

  • Horizontal Machining Structure: Designed for efficient multi-surface machining applications.
  • T-Type Structure: T-type machine structure according to the product specification.
  • Multiple Worktable Sizes: 630 × 630 mm, 800 × 800 mm and 1000 × 1000 mm.
  • Large XYZ Travel: X-axis travel up to 2000 mm.
  • 6000 rpm Spindle: Standard spindle speed across all three models.
  • High-Power Spindle: 15 kW FANUC or 22 kW KND configuration.
  • 24-Tool Magazine: Supports continuous multi-process machining.
  • Optional Gearbox: Gearbox option available according to machine configuration.
  • Customizable: Configuration can be customized according to application requirements.

Product Specifications

ParameterHMC630-DTHMC800-DTHMC1000-DT
Work Table630 × 630 mm800 × 800 mm1000 × 1000 mm
X / Y / Z Travel1050 / 950 / 850 mm1300 / 1150 / 1000 mm2000 / 1350 / 1300 mm
Spindle Speed6000 rpm6000 rpm6000 rpm
Spindle Power (FANUC)15 kW15 kW15 kW
Spindle Power (KND)22 kW22 kW22 kW
Tool Magazine Capacity242424

Applications

  • Horizontal CNC machining
  • Multi-surface component machining
  • Large workpiece machining
  • Precision industrial component machining
  • High-efficiency metal machining

FAQs

Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.

Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.

Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.

Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.

The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.

Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.

Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.

They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.

Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.

Our goal is to help customers achieve stable operation and efficient automation production.
