Shandong Jisi Intelligent Equipment Co., Ltd.
Industrial Multirotor UAV
PRODUCT PARAMETERS
- Product Name: Industrial Multirotor UAV
- Dimensions: Approx. 1830 × 1830 × 650 mm
- Weight: Approx. 7.8 kg
- Max. Payload: Up to 10 kg
- Flight Time: Up to 55 min
- Max. Flight Speed: Up to 20 m/s
- Positioning: GPS / GLONASS / BeiDou / Galileo
- Transmission Distance: Up to 15 km
- Customization: OEM / ODM Available
Description
FAQs
Request A Quote
Description

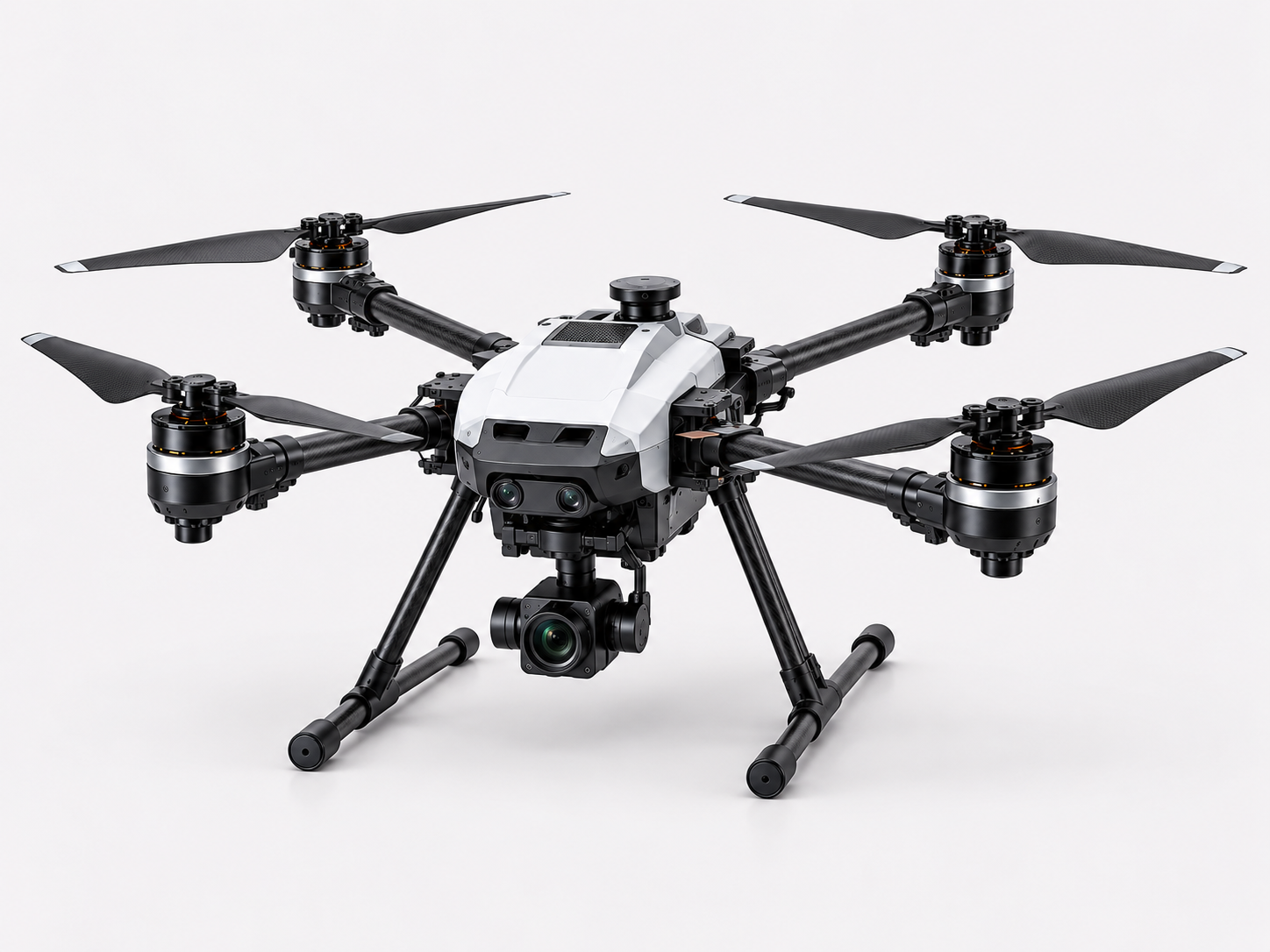

Industrial Multirotor UAV
The Industrial Multirotor UAV is a professional unmanned aerial platform designed for inspection, mapping, monitoring, search & rescue and logistics applications.
The UAV supports a maximum payload of up to 10 kg and offers a no-payload flight time of up to 55 minutes. With a 10 kg payload, flight time is approximately 30 minutes.
The aircraft supports GPS, GLONASS, BeiDou and Galileo positioning systems, with optional RTK positioning for applications requiring higher positioning accuracy.
Multi-directional obstacle sensing, a 3-axis stabilized gimbal camera and long-distance transmission capability help support safe and efficient industrial operation.
A quick-release payload interface allows the UAV to support multiple mission payloads, including cameras, thermal cameras, LiDAR, gas detectors and loudspeakers.
OEM / ODM customization is available according to application requirements.
Product Features
- Industrial Multirotor Platform: Designed for professional industrial applications.
- High Payload Capacity: Maximum payload up to 10 kg.
- Long Flight Time: Up to 55 minutes without payload.
- Fast Flight: Maximum flight speed up to 20 m/s.
- Wind Resistance: Supports wind speeds up to 12 m/s.
- Multi-System Positioning: GPS / GLONASS / BeiDou / Galileo.
- Optional RTK: RTK positioning available as an option.
- Obstacle Sensing: Multi-directional obstacle sensing.
- 3-Axis Gimbal Camera: HD camera with stabilized gimbal.
- Long-Distance Transmission: Up to 15 km transmission distance.
- Multiple Payloads: Supports camera, thermal camera, LiDAR, gas detector and loudspeaker.
- OEM / ODM: Customization available.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Multirotor UAV |
| Diagonal Wheelbase | Approx. 1700 mm |
| Dimensions (Unfolded) | Approx. 1830 × 1830 × 650 mm |
| Weight without Payload | Approx. 7.8 kg |
| Maximum Takeoff Weight | Approx. 24.8 kg |
| Maximum Payload | Up to 10 kg |
| Flight Time (No Payload) | Up to 55 min |
| Flight Time (10 kg Payload) | Approx. 30 min |
| Maximum Flight Speed | Up to 20 m/s |
| Wind Resistance | Up to 12 m/s |
| Positioning System | GPS / GLONASS / BeiDou / Galileo |
| RTK Positioning | Optional |
| Obstacle Avoidance | Multi-Directional Obstacle Sensing |
| Camera | HD Camera with 3-Axis Stabilized Gimbal |
| Transmission Distance | Up to 15 km |
| Communication | 2.4 GHz / 5.8 GHz / Optional 4G |
| Operating Temperature | -20°C to 50°C |
| Customization | OEM / ODM Available |
Applications
- Industrial Inspection
- Mapping
- Monitoring
- Search & Rescue
- Logistics
FAQs
What types of automation equipment do you provide?
Shandong Jisi Intelligent Equipment Co., Ltd. provides intelligent automation solutions including collaborative robot welding units, collaborative robot loading and unloading units, and crawler-type mobile welding robots.
Our products are designed for flexible manufacturing applications such as robotic welding, CNC machine tending, automatic material handling and welding automation.
Can your robotic systems be customized according to our production requirements?
Yes. Our automation solutions can be configured according to different workpieces, production processes, equipment layouts and application requirements.
Customization options may include robot configuration, welding processes, gripping solutions, workstation structure and system integration.
How can we choose the right automation solution for our application?
The suitable solution depends on factors such as workpiece size, material, production process, required operation, available installation space and equipment connection requirements.
Our team evaluates the actual working conditions and provides a suitable automation solution based on the customer’s manufacturing needs.
What are the advantages of collaborative robot solutions?
Collaborative robot systems are designed for flexible production environments. They can support human-machine cooperation, quick deployment, simple operation and adaptation to different production tasks.
They are suitable for applications requiring flexible automation, small-batch production and frequent product changes.
Do you provide technical support for installation and operation?
Yes. We provide technical support related to equipment setup, operation guidance and application solutions according to customer requirements.
Our goal is to help customers achieve stable operation and efficient automation production.
