9-Axis Gantry Robot Welding Workstation
PRODUCT PARAMETERS
Description

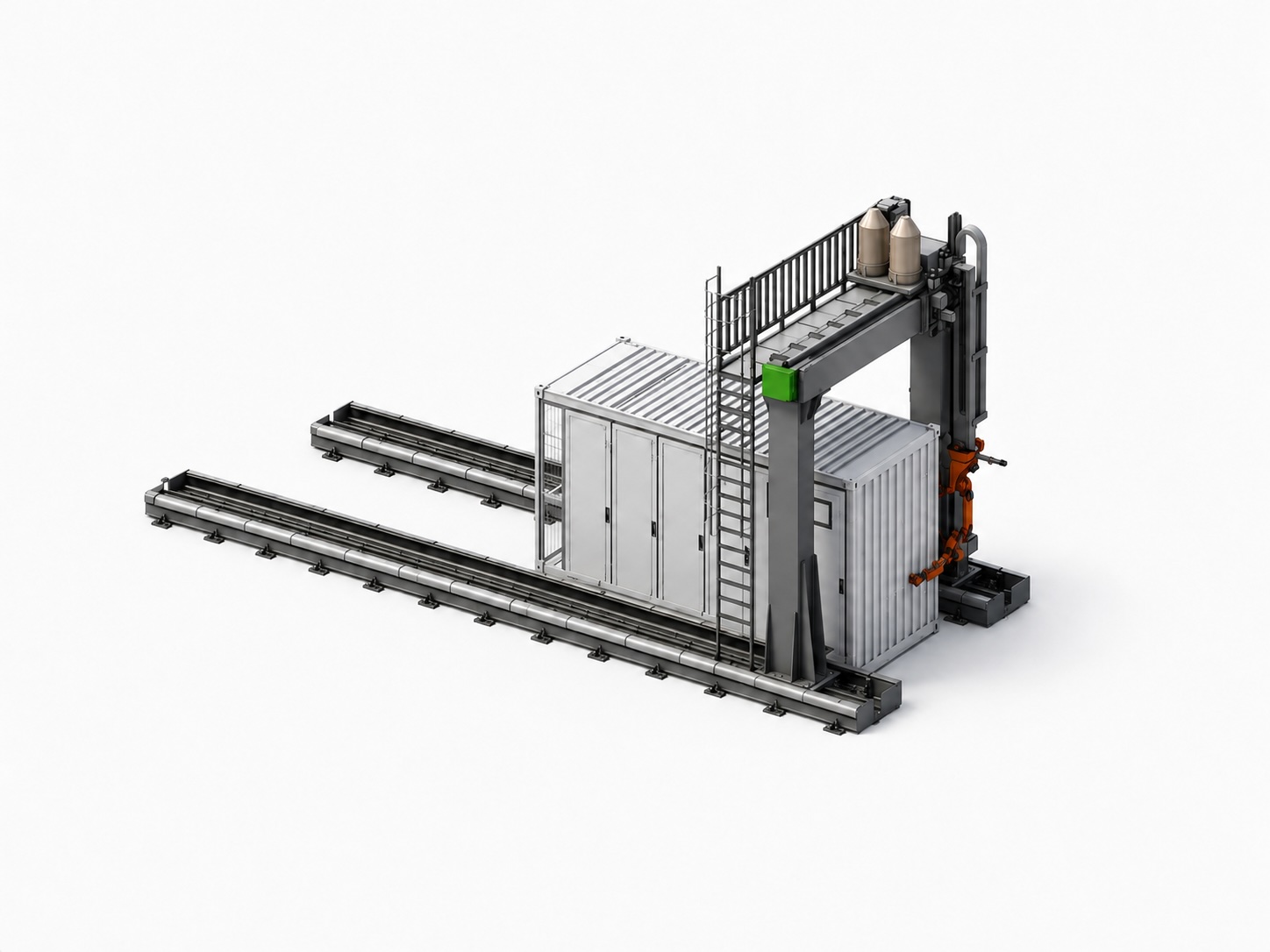

9-Axis Gantry Robot Welding Workstation
The 9-axis gantry robot welding workstation is designed for welding medium and large box structures after forming. It is suitable for internal and external connection seams, frame welds, and welding operations during the final assembly stage.
The workstation combines an XYZ three-axis gantry or ground rail system with a 6-axis welding robot. A visual scanning and weld seam tracking system supports coordinated multi-axis welding across large workpieces.
Applications
- Internal connection seam welding
- External connection seam welding
- Box frame welding
- Peripheral seam welding during final assembly
- Vertical welding
- Corrugated seam welding
Equipment Configuration
- XYZ three-axis gantry or ground rail system
- 6-axis welding robot
- Welding power source and wire feeding system
- Visual scanning and weld seam tracking system
Product Features
- Provides wide coverage for large box structures
- Supports coordinated multi-axis welding
- Supports vertical welding and corrugated seam welding
- Suitable for peripheral weld seams during final assembly
- Suitable for medium and large box structures with widths from 3 to 6 meters
- Suitable for welding after the box structure is formed
- Workstation configuration can be selected according to the on-site layout
Main Technical Data
| Product Type | 9-Axis Gantry Robot Welding Workstation |
|---|---|
| External Motion System | XYZ three-axis gantry or ground rail |
| Robot Configuration | 6-axis welding robot |
| Total Motion Axes | 9 axes |
| Welding System | Welding power source and wire feeding system |
| Scanning and Tracking System | Visual scanning and weld seam tracking system |
| Suitable Workpiece Width | 3–6 m |
| Supported Welding | Vertical welding and corrugated seam welding |
| Application Stage | Box structure final assembly |
Workstation Configuration: The workstation form can be configured according to the welding object, available working space, robot coverage range, and fixture positioning method.
