HP200VZ Weld Seam Tracking Sensor
PRODUCT PARAMETERS
Description

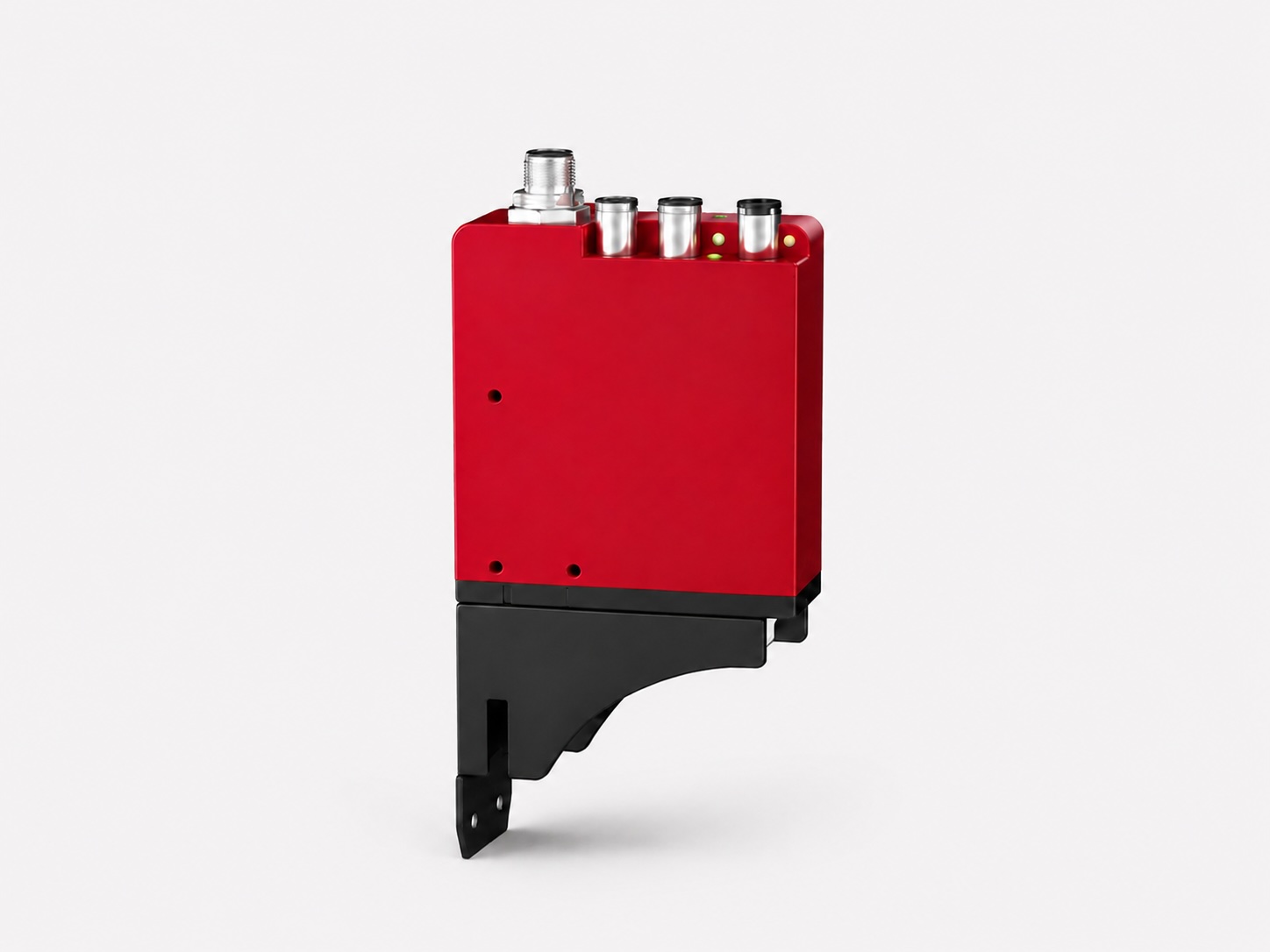

HP200VZ Weld Seam Tracking Sensor
The HP200VZ Weld Seam Tracking Sensor is a compact laser vision sensor designed for robotic weld seam positioning, detection and real-time tracking. Its 200 mm central working distance makes it suitable for close-range welding applications involving small weld seams and narrow grooves.
The sensor can be used with aluminum, stainless steel and other reflective materials. It supports TCP, Modbus TCP, UDP and EtherNet/IP communication protocols for integration with robotic welding systems and automated welding equipment.
Applications
- Robotic weld seam positioning
- Real-time weld seam tracking
- Small weld seam detection
- Narrow groove welding
- Aluminum component welding
- Stainless steel component welding
- Collaborative robotic welding units
Product Features
- Designed for close-range weld seam detection
- Suitable for small weld seams and narrow grooves
- Suitable for aluminum, stainless steel and other reflective materials
- Supports real-time weld seam tracking and positioning
- Maximum frame rate of 45 Hz
- Compact dimensions of 75 × 98 × 33 mm
- Supports TCP, Modbus TCP, UDP and EtherNet/IP
- Supports air cooling and water cooling
- Operating temperature range from -10°C to 60°C
- 24 V operating voltage and maximum operating power of 5 W
Main Technical Data
| Parameter | Specification |
|---|---|
| Product Model | HP200VZ |
| Maximum Frame Rate | 45 Hz |
| Central Working Distance | 200 mm |
| Z-Axis Detection Range | 150–260 mm |
| Y-Axis Detection Range | 54–90 mm |
| Z-Axis Resolution | 0.06–0.20 mm |
| Y-Axis Resolution | 0.04–0.07 mm |
| Minimum Recognition Height | 0.30 mm |
| Minimum Recognition Width | 0.25 mm |
| Welding Speed | 45 mm/s |
| Communication Protocols | TCP, Modbus TCP, UDP and EtherNet/IP |
| Maximum Operating Power | 5 W |
| Operating Temperature | -10°C to 60°C |
| Operating Voltage | 24 V |
| Laser Class | 3B |
| Dimensions | 75 × 98 × 33 mm |
| Weight | 383 g |
| Cooling Method | Air cooling or water cooling |
