CNC Magic Welding Unit
PRODUCT PARAMETERS
Description
CNC Magic Welding Unit

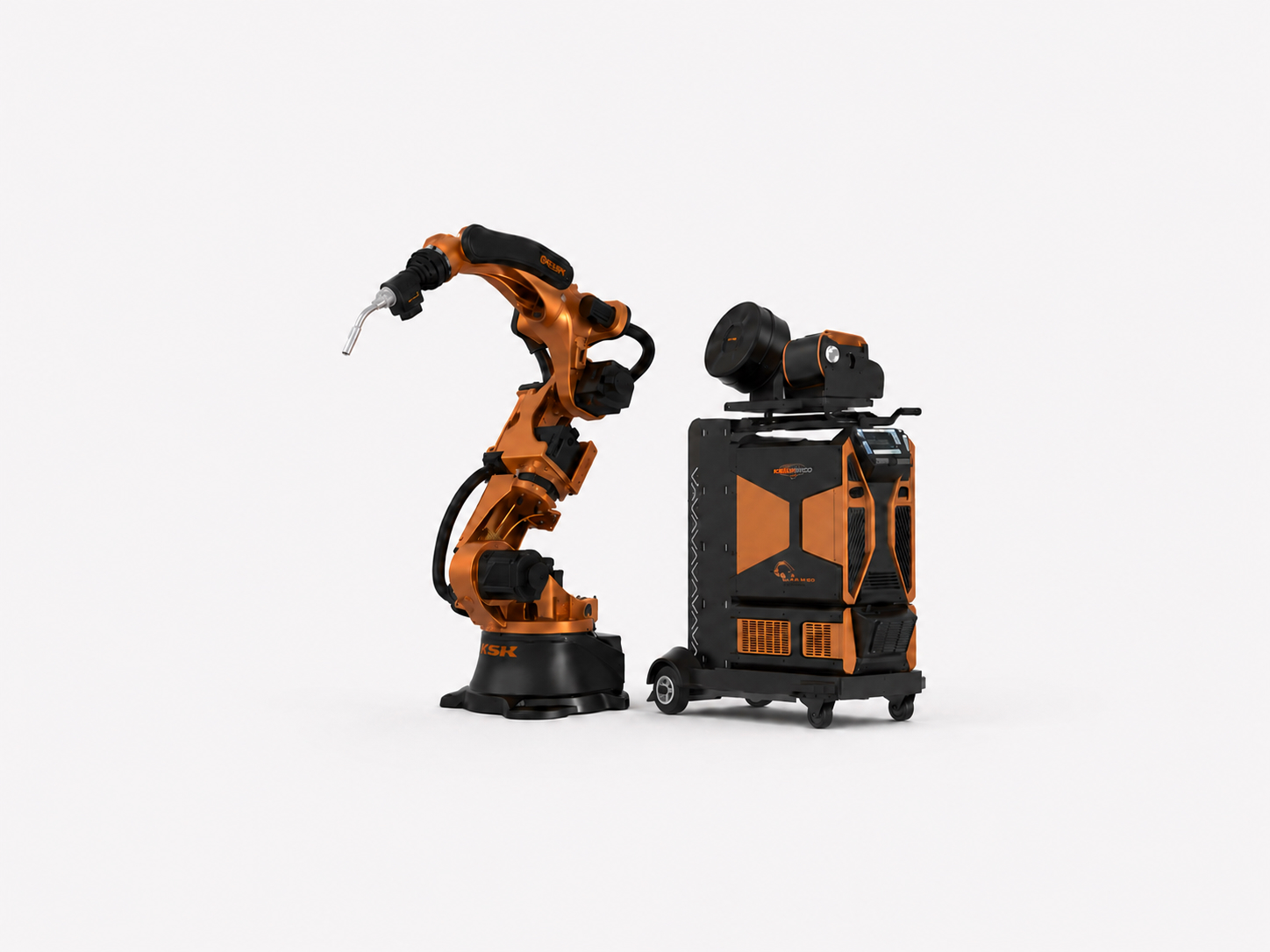

The CNC Magic Welding Unit integrates an MDC-500P digital welding machine with an RH Series hollow welding robot. Welding process technology and robotic motion control are combined in one automated welding system.
The unit is suitable for MIG/MAG welding of thin and ultra-thin sheets with a thickness of 1.0 mm or less. It is designed to address welding problems such as high heat input, serious workpiece deformation and excessive welding spatter.
Applications
- Automotive components and accessories
- Motorcycle components and accessories
- Agricultural machinery
- Engineering machinery
- Hardware and metal component welding
- Thin and ultra-thin sheet MIG/MAG welding
Product Features
- Integrated digital welding machine and hollow welding robot
- Suitable for automated MIG/MAG welding processes
- Available with six-axis and seven-axis robot configurations
- Designed for sheets with a thickness of 1.0 mm or less
- Helps control welding heat input and workpiece deformation
- Helps reduce welding spatter during automated welding
- Hollow robot structure supports internal welding cable routing
- AC servo drive system for multi-axis robot movement
Structural Configuration
- New integrated drive structure with a compact control cabinet design
- Integrated servo cabinet volume reduced by approximately 50%
- Integrated servo cabinet weight reduced by approximately 30%
- Flexible cabinet layout for welding workstation integration
- Rectification and energy feedback compensation during robot acceleration and deceleration
- Robot power consumption reduced by approximately 30% under the same operating conditions
- Integrated motor brake closed-loop detection
- Dynamic braking function for safer robot operation
- High-speed motor configuration for stable robot movement
- Motor operating speed fluctuation reduced by approximately 30%
Main System Configuration
| Component | Configuration |
|---|---|
| Welding Machine | MDC-500P Digital Welding Machine |
| Robot Series | RH Series Hollow Welding Robot |
| Robot Configuration | Six-axis or seven-axis |
| Drive System | AC servo drive |
| Rated Payload | 6 kg |
| Repeat Positioning Accuracy | ±0.05 mm |
| Welding Process | MIG/MAG welding |
Robot Model Specifications
| Parameter | RH06B1-1605 | RH06A2-2000 | RH06A2-1490 |
|---|---|---|---|
| Number of Axes | 7 | 6 | 6 |
| Drive System | AC servo drive | AC servo drive | AC servo drive |
| Rated Payload | 6 kg | 6 kg | 6 kg |
| Repeat Positioning Accuracy | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Robot Body Weight | 215 kg | 265 kg | 190 kg |
Joint Motion Range
| Joint | RH06B1-1605 | RH06A2-2000 | RH06A2-1490 |
|---|---|---|---|
| J1 | ±170° | ±170° | ±170° |
| J2 | +110° to -70° | +140° to -70° | +115° to -80° |
| E Axis | ±90° | — | — |
| J3 | +80° to -150° | +75° to -140° | +80° to -150° |
| J4 | ±180° | ±180° | ±180° |
| J5 | ±135° | ±135° | ±135° |
| J6 | ±360° | ±360° | ±360° |
Maximum Single-Axis Speed
| Joint | RH06B1-1605 | RH06A2-2000 | RH06A2-1490 |
|---|---|---|---|
| J1 | 200°/s | 175°/s | 200°/s |
| J2 | 173°/s | 165°/s | 200°/s |
| E Axis | 200°/s | — | — |
| J3 | 200°/s | 195°/s | 200°/s |
| J4 | 288°/s | 282°/s | 282°/s |
| J5 | 375°/s | 370°/s | 370°/s |
| J6 | 630°/s | 630°/s | 630°/s |
