CP350V Weld Seam Tracking Sensor
PRODUCT PARAMETERS
Description

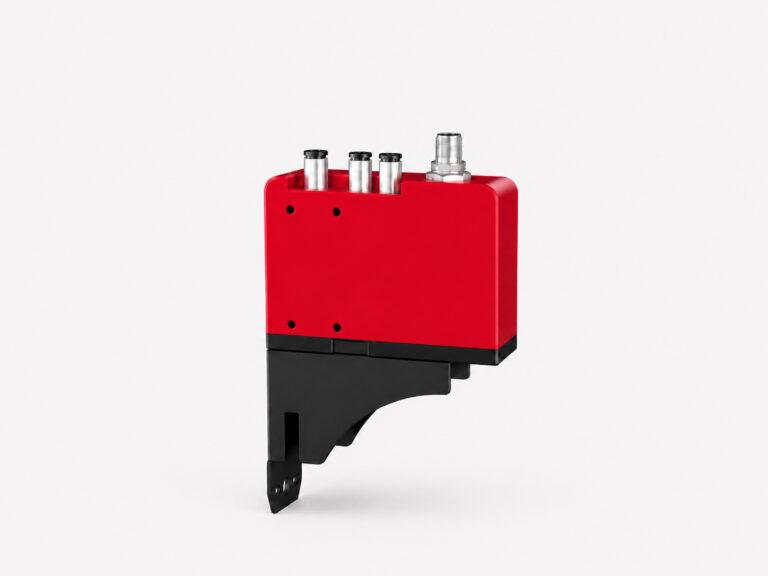

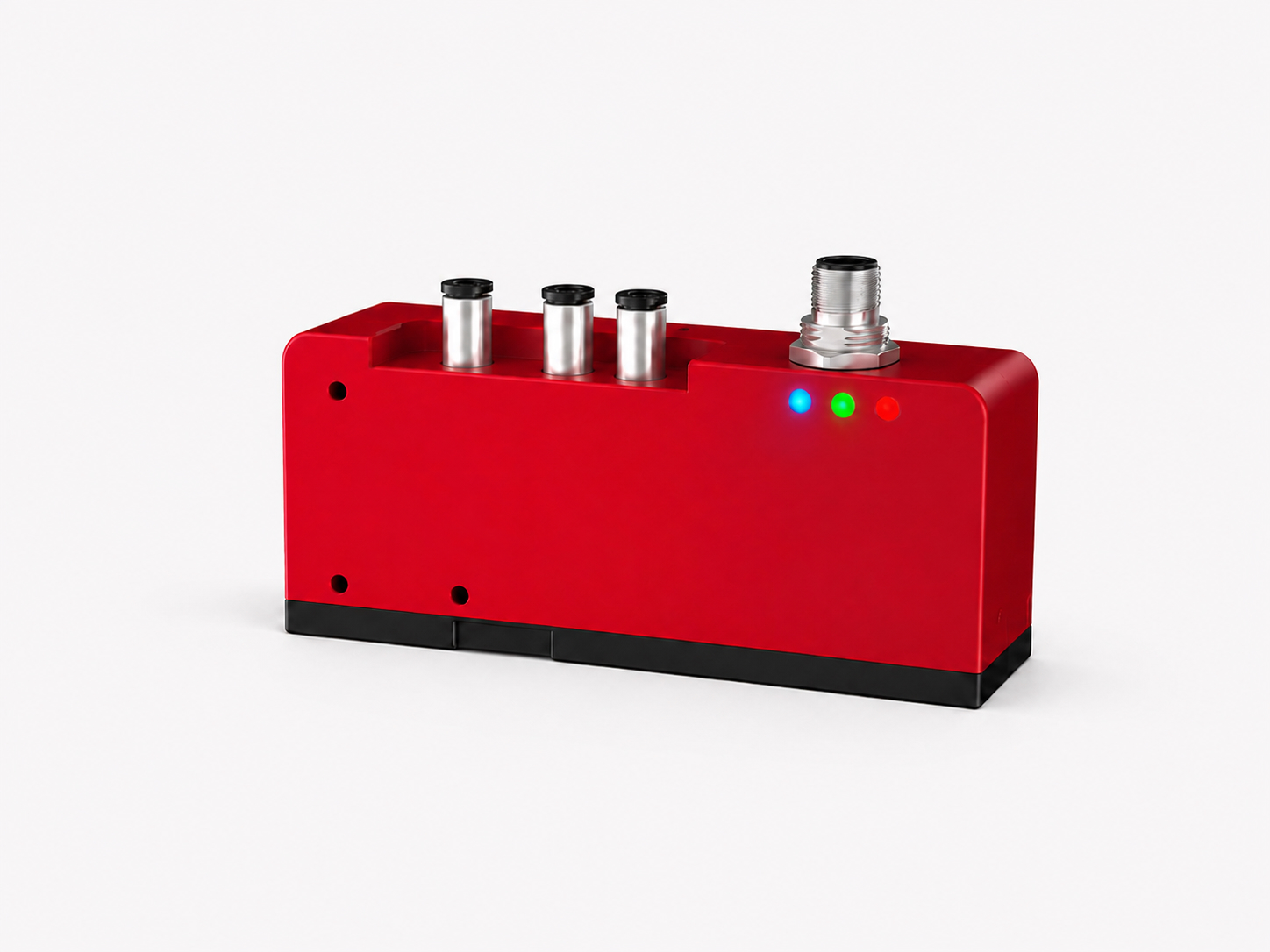

CP350V Weld Seam Tracking Sensor
The CP350V Weld Seam Tracking Sensor is a compact laser vision sensor designed for medium- and long-range robotic welding applications. It supports weld seam positioning, detection and real-time tracking for large workpieces and applications requiring a greater distance between the sensor and the welding area.
The sensor provides a central working distance of 350 mm, a maximum frame rate of 110 Hz and a wide Y-axis and Z-axis detection range. It supports TCP, Modbus TCP, UDP and EtherNet/IP communication protocols for integration with robotic welding systems.
Applications
- Robotic weld seam positioning
- Real-time weld seam tracking
- Large workpiece welding
- Medium- and long-range weld seam detection
- Welding environments with installation interference
- Automated and collaborative robotic welding units
Product Features
- Designed for medium- and long-range welding applications
- Suitable for large workpieces and applications with installation interference
- Supports fast weld seam positioning and tracking
- Maximum frame rate of 110 Hz
- Wide Y-axis and Z-axis detection ranges
- Compact and highly integrated structure
- Supports multiple industrial communication protocols
- Supports air cooling and water cooling
- Operating temperature range from -10°C to 60°C
Main Technical Data
| Parameter | Specification |
|---|---|
| Product Model | CP350V |
| Maximum Frame Rate | 110 Hz |
| Central Working Distance | 350 mm |
| Z-Axis Detection Range | 160–540 mm |
| Y-Axis Detection Range | 62–184 mm |
| Z-Axis Resolution | 0.14–1.22 mm |
| Y-Axis Resolution | 0.06–0.18 mm |
| Minimum Recognition Height | 0.60 mm |
| Minimum Recognition Width | 0.70 mm |
| Welding Speed | 50 mm/s |
| Communication Protocols | TCP, Modbus TCP, UDP and EtherNet/IP |
| Maximum Operating Power | 6 W |
| Operating Voltage | 24 V |
| Operating Temperature | -10°C to 60°C |
| Laser Class | 3B |
| Dimensions | 117 × 55 × 33 mm |
| Weight | 361 g |
| Cooling Method | Air cooling or water cooling |
