SP200V Weld Seam Tracking Sensor
PRODUCT PARAMETERS
Description

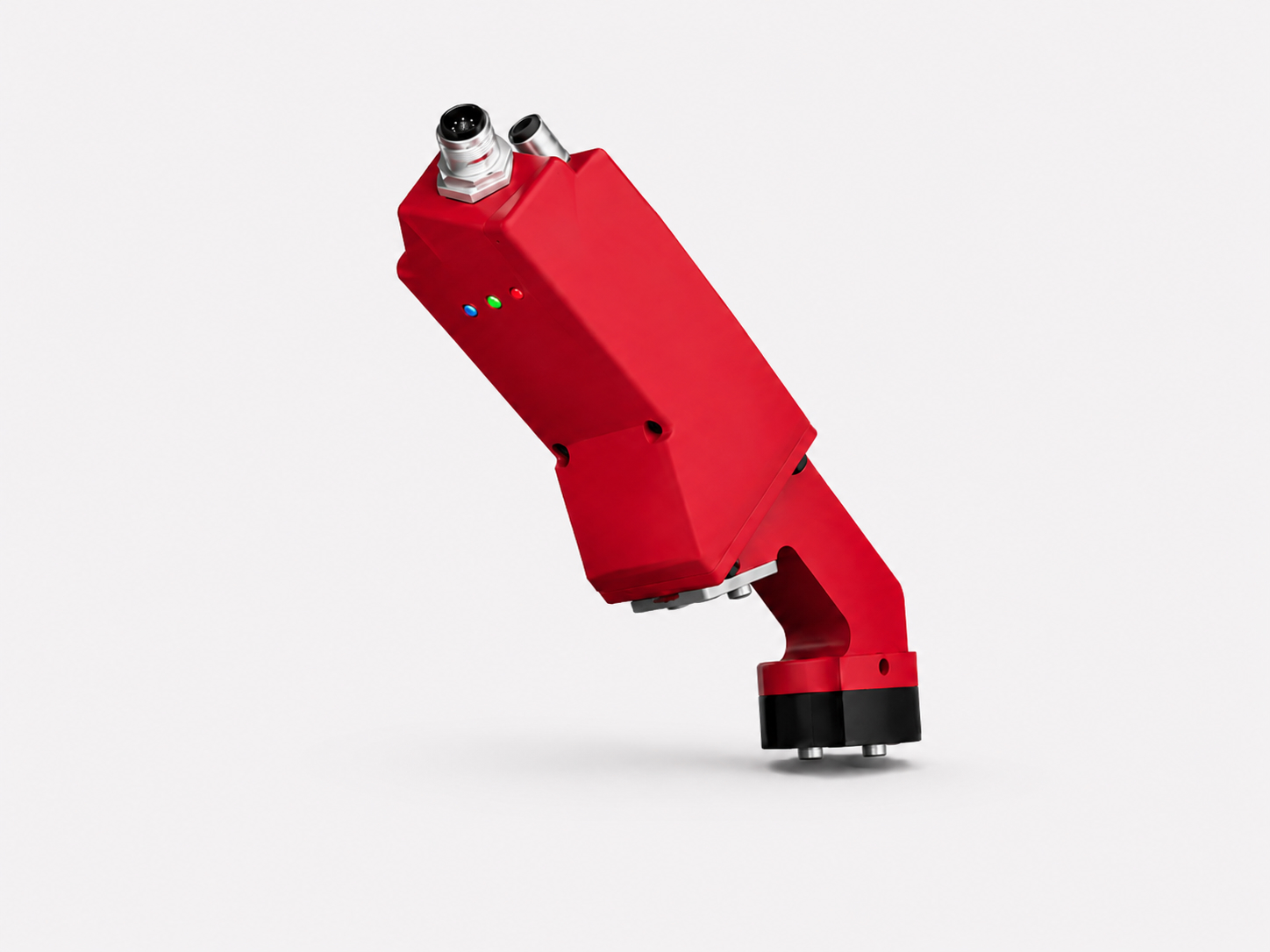

SP200V Weld Seam Tracking Sensor
The SP200V Weld Seam Tracking Sensor is a highly integrated laser vision sensor designed for robotic weld seam positioning and real-time tracking. It provides a central working distance of 200 mm and a maximum frame rate of 110 Hz for medium- and close-range welding applications.
The welding-gun-style housing helps reduce interference around the welding torch and workpiece. Its compact structure supports installation in robotic welding units where mounting space is limited.
Applications
- Robotic weld seam positioning
- Real-time weld seam tracking
- Medium- and close-range welding applications
- Automated welding workstations
- Applications with limited installation space
- Collaborative robotic welding units
Product Features
- Highly integrated intelligent sensor structure
- Supports fast weld seam positioning and real-time tracking
- Welding-gun-style housing helps reduce installation interference
- Suitable for medium- and close-range detection
- Maximum frame rate of 110 Hz
- Supports air cooling and water cooling
- Compact dimensions for flexible installation
- Supports multiple industrial communication protocols
Main Technical Data
| Parameter | Specification |
|---|---|
| Product Model | SP200V |
| Maximum Frame Rate | 110 Hz |
| Central Working Distance | 200 mm |
| Z-Axis Detection Range | 110–300 mm |
| Y-Axis Detection Range | 56–115 mm |
| Z-Axis Resolution | 0.10–0.50 mm |
| Y-Axis Resolution | 0.05–0.10 mm |
| Minimum Recognition Height | 0.40 mm |
| Minimum Recognition Width | 0.30 mm |
| Welding Speed | 50 mm/s |
| Communication Protocols | TCP, Modbus TCP, UDP and EtherNet/IP |
| Maximum Operating Power | 6 W |
| Operating Voltage | 24 V |
| Operating Temperature | -10°C to 60°C |
| Laser Class | 3B |
| Dimensions | 46 × 50 × 193 mm |
| Weight | 425 g |
| Cooling Method | Air cooling or water cooling |
